Eclipse Cross SEL
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Configuration Diagrams
>>
Door
Configuration Diagrams: Door
CAUTION:
Aluminum wires are partially used for the front door wiring harness.

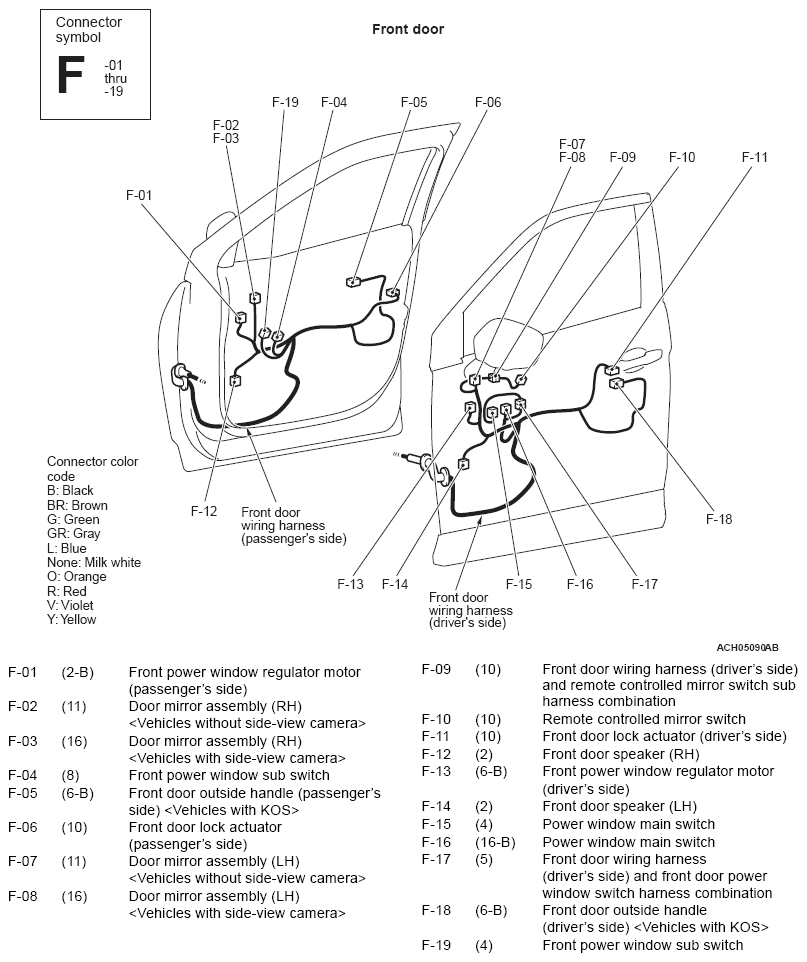

Fig 1: Front Door Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:
Aluminum wires are partially used for the rear door wiring harness.

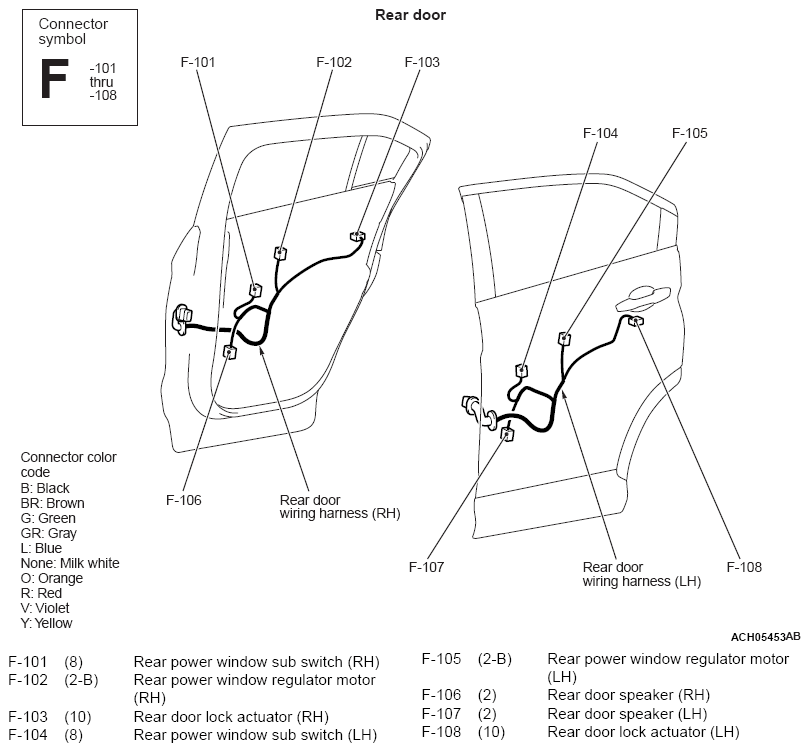

Fig 2: Rear Door Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
