Removal And Installation

NOTE: You do not need to perform the calibration for the battery current sensor.

Pre-removal and Post-installation Operation

Air Cleaner Intake Duct Removal and Installation (Refer to AIR CLEANER ).

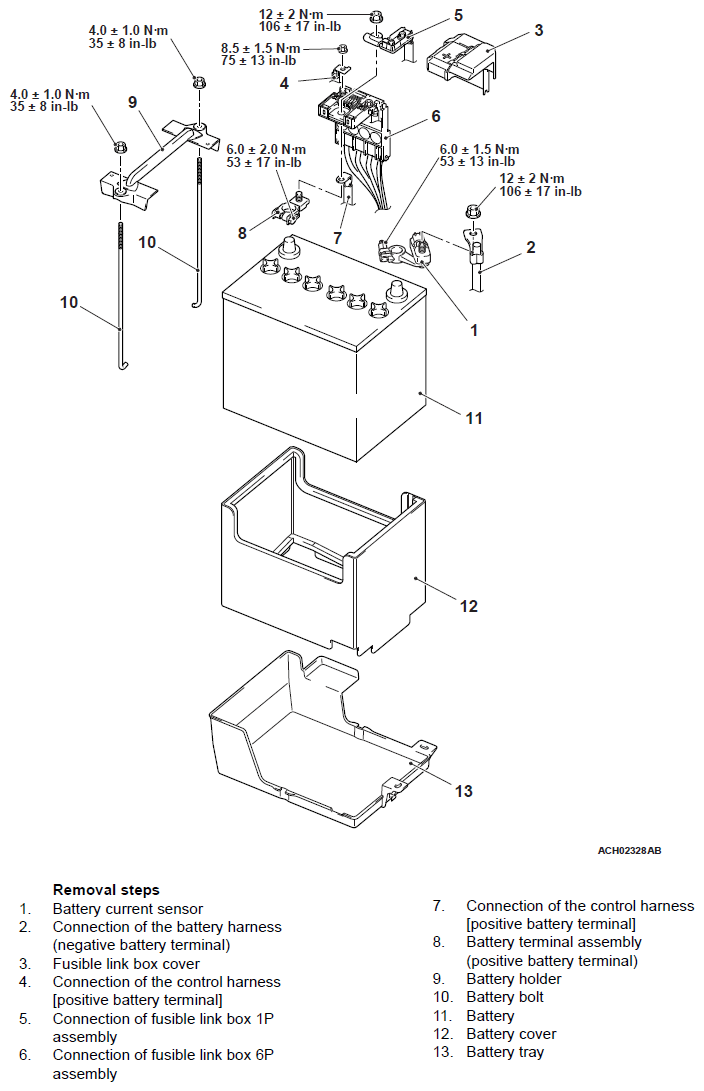

Fig 1: Battery Components With Torque Specifications
G12149012Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
