Removal And Installation: Notes

Post-installation operation

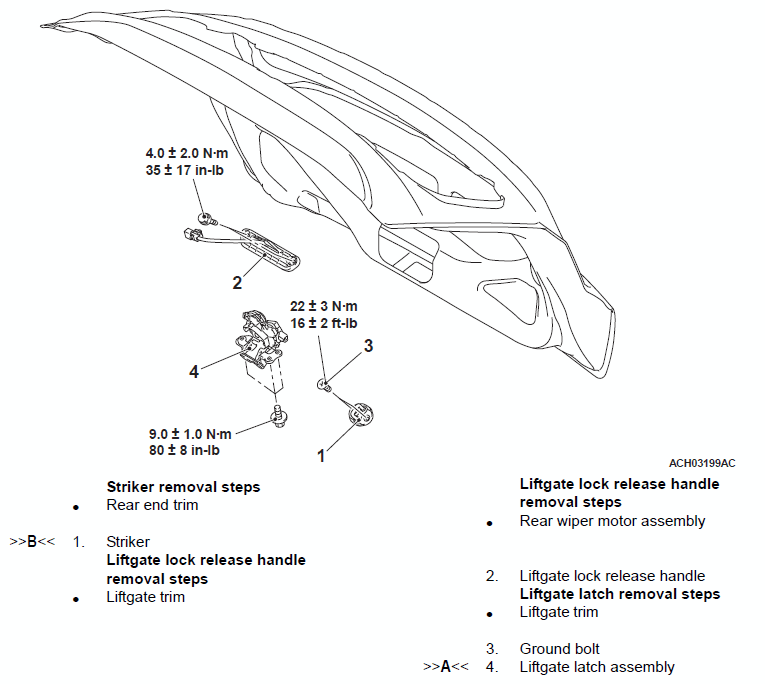

Fig 1: Removing/Installing Liftgate Handle And Latch Components With Torque Specification
G12148388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
