Home >> Mitsubishi >> 2018 >> Eclipse Cross SEL >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Amplifier >> Removal And Installation >> Notes

Removal And Installation: Notes

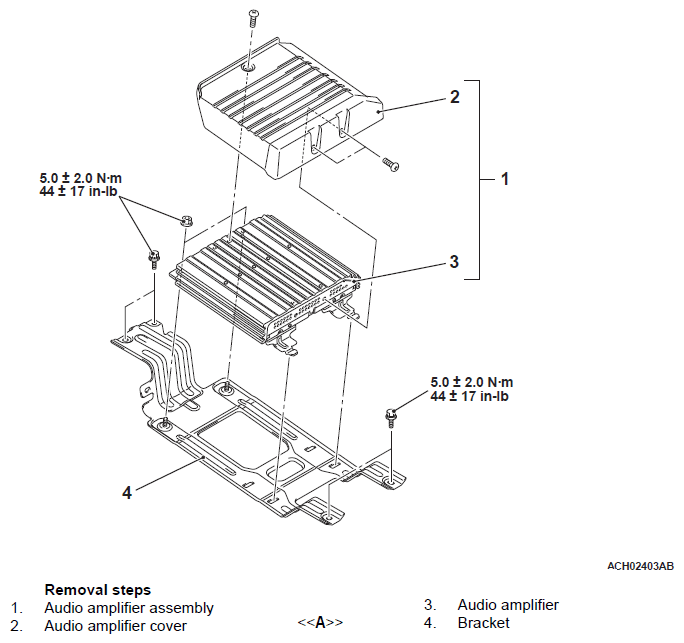

Fig 1: Amplifier Components With Torque Specifications

G12149422

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
