Removal And Installation

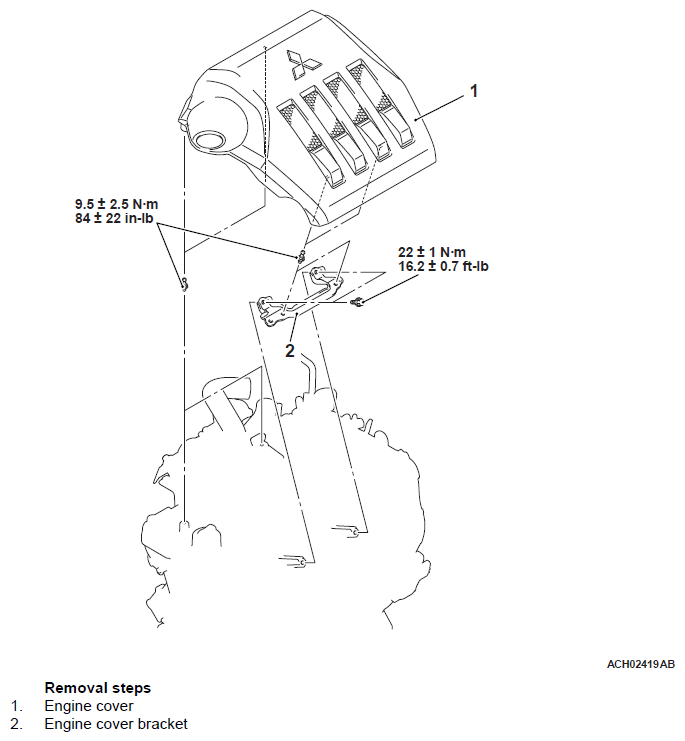

Fig 1: Removing/Installing Engine Cover Component With Torque Specification

G12143697

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
