Removal And Installation

Pre-removal and Post-installation Operation

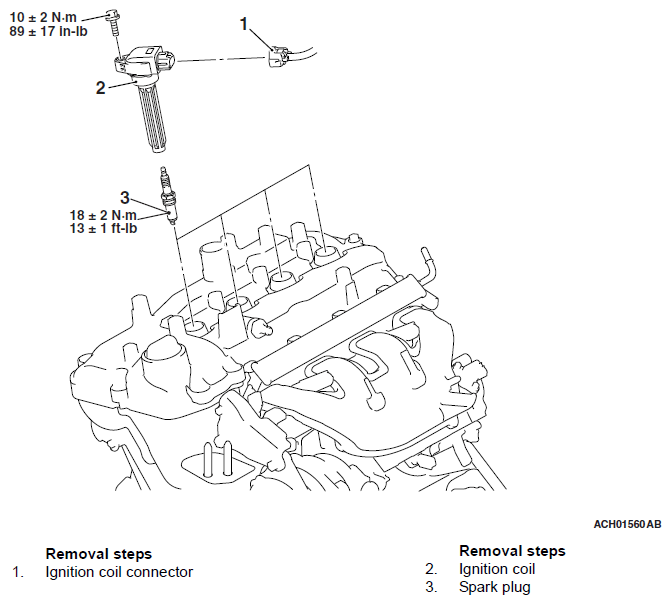

Fig 1: Ignition Coil Component With Torque Specifications
G12147098Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
