Eclipse Cross LE
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
Engine Lubrication
>>
Engine Oil Cooler
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
Pre-removal Operation
Engine Room Under Cover Front A, B Removal (Refer to
REMOVAL AND INSTALLATION
).
Engine Coolant Draining (Refer to
ENGINE COOLANT CHANGE
).
Engine Oil Filter Removal (Refer to
ENGINE OIL FILTER REPLACEMENT
).
Post-installation Operation
Engine Oil Filter Installation (Refer to
ENGINE OIL FILTER REPLACEMENT
).
Engine Coolant Refilling (Refer to
ENGINE COOLANT CHANGE
).
Engine Room Under Cover Front A, B Installation (Refer to
REMOVAL AND INSTALLATION
).

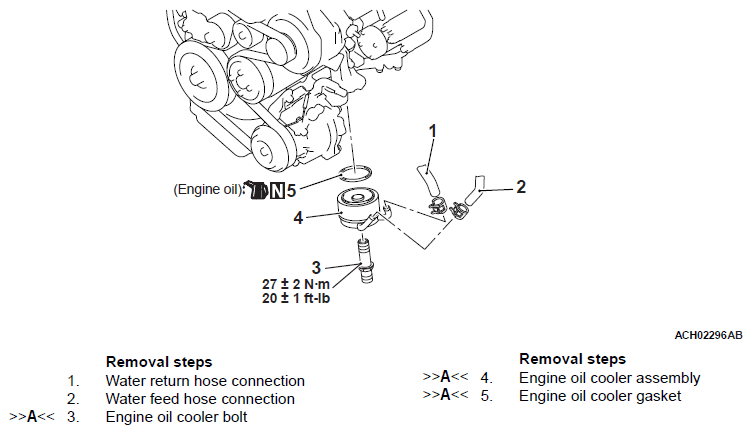

Fig 1: Engine Oil Cooler Component With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
