Removal And Installation: Notes

CAUTION:
  • When removing or installing the volume air flow sensor, be careful not to apply impact to the sensor.
  • Do not reuse the volume air flow sensor that has been dropped.

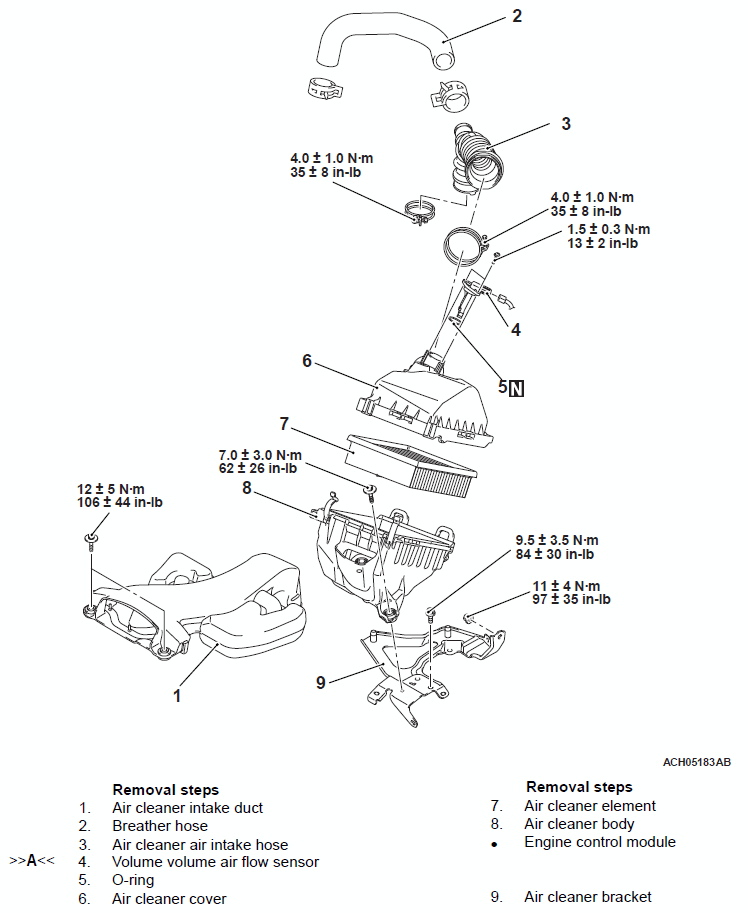

Fig 1: Air Cleaner Component With Torque Specifications
G12147042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
