Fusible Link And Fuse: Fuse

Name	Symbol	Name	Symbol
Fuse Nos. 3 to 23 (passenger compartment)	B	Fuse Nos. 6, 8 to 18, 20 to 22 and 24 to 33 (engine compartment)	A

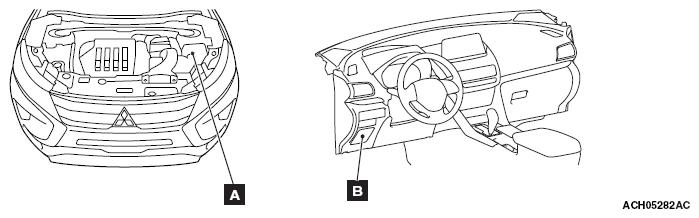

Fig 1: Fusible Link And Fuse Component Locations (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

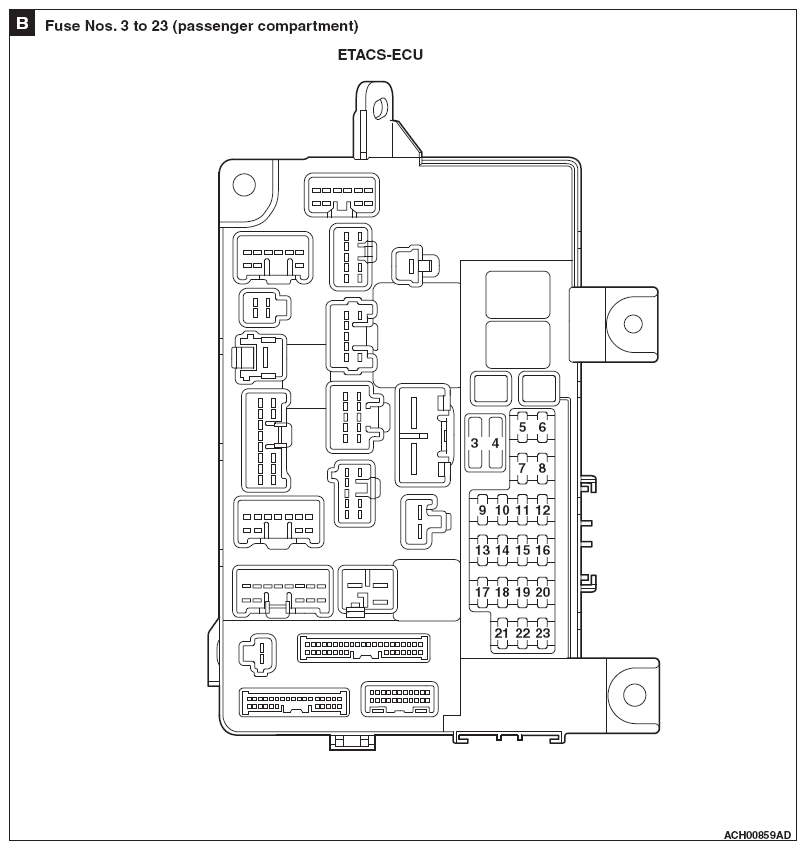

Fig 2: Fusible Link And Fuse Component Locations (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

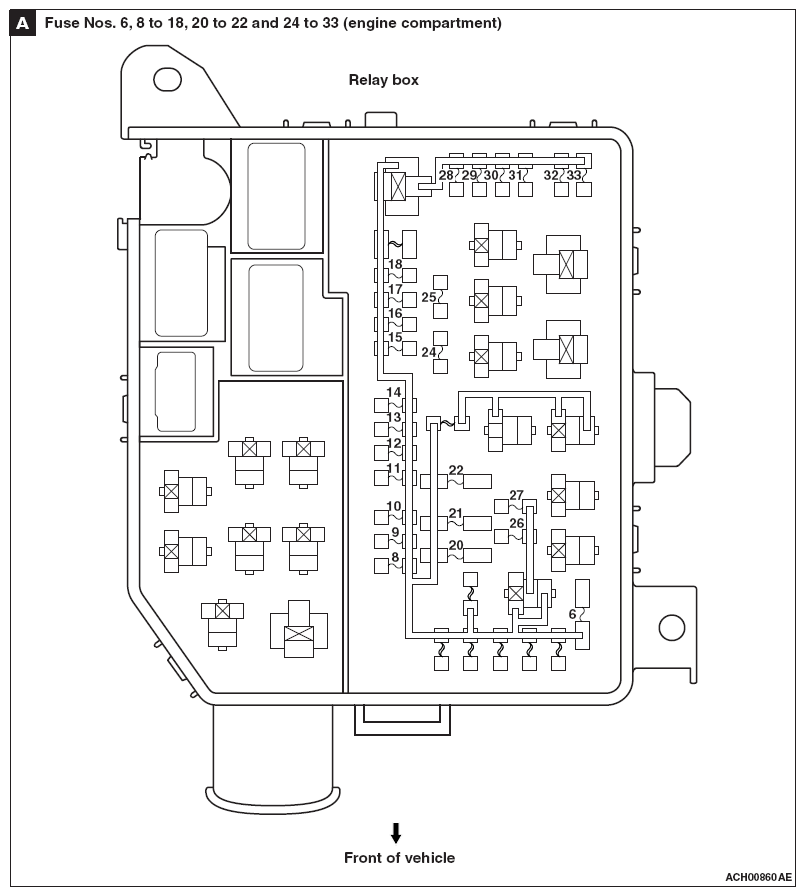

Fig 3: Fusible Link And Fuse Component Locations (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
