Computer Connector

Insert a screwdriver [1.4 mm (0.06 inch) width] as shown in the illustration, disengage the front holder, and remove it.

Fig 1: Disengaging Front Holder
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Push the harness wire of the terminal to be repaired deep into the connector from the harness side and hold it there.

Fig 2: Pushing Harness Wire Of Terminal Into Connector From Harness Side
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert the tip of the screwdriver [1.4 mm (0.06 inch) width] into the connector as shown in the illustration, gently push the housing lance down with the tip, and pull out the terminal.

Fig 3: Inserting Tip Of Screwdriver Into Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

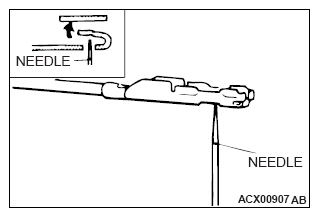

Insert a needle through the hole provided on the terminal and raise the contact point. Lightly squeeze the outer edge so the flats are parallel with the bottom.

Fig 4: Inserting Needle Through Hole On Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
