Configuration Diagrams: Miscellaneous

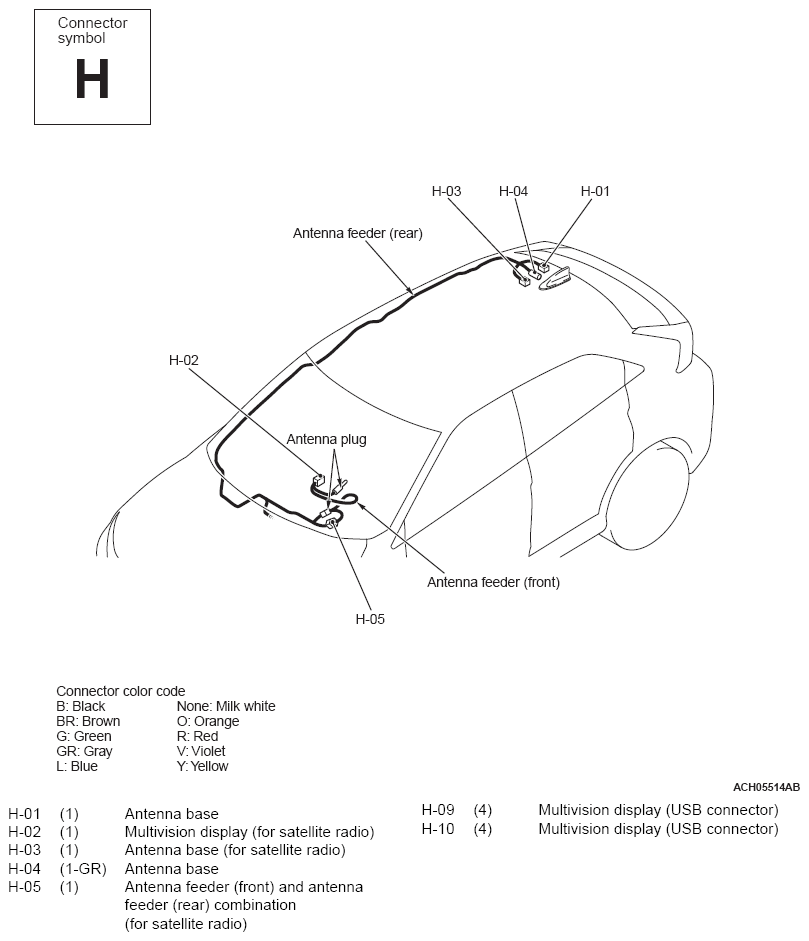

Fig 1: Miscellaneous Configuration Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

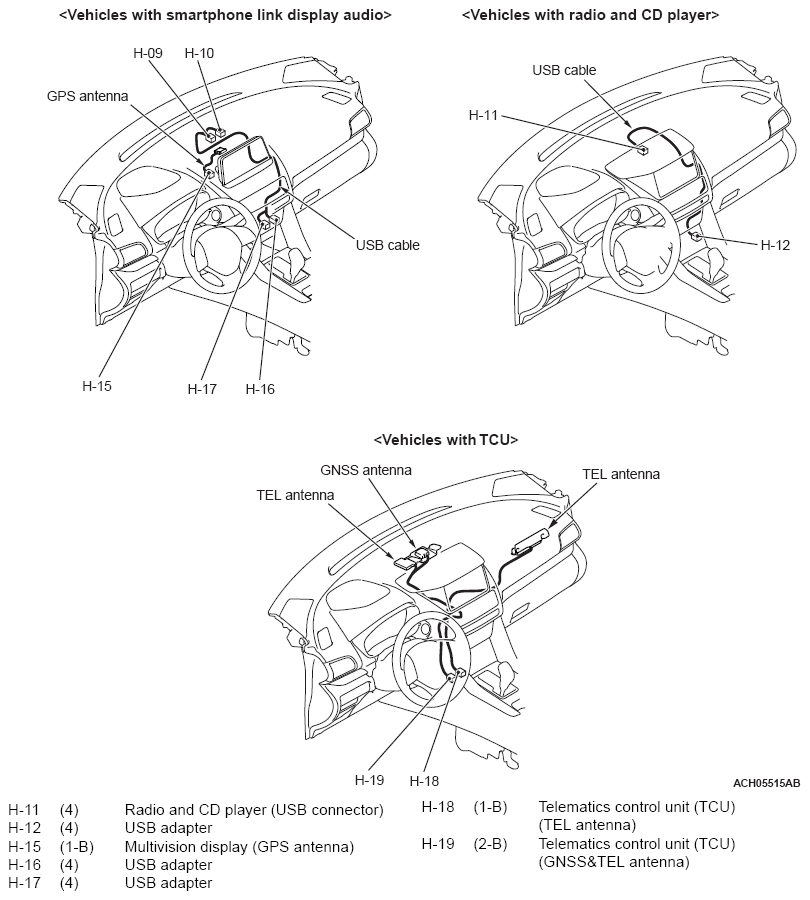

Fig 2: Miscellaneous Configuration Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
