Eclipse Cross LE
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Configuration Diagrams
>>
Liftgate
Configuration Diagrams: Liftgate
CAUTION:
Aluminum wires are partially used for the liftgate wiring harness.

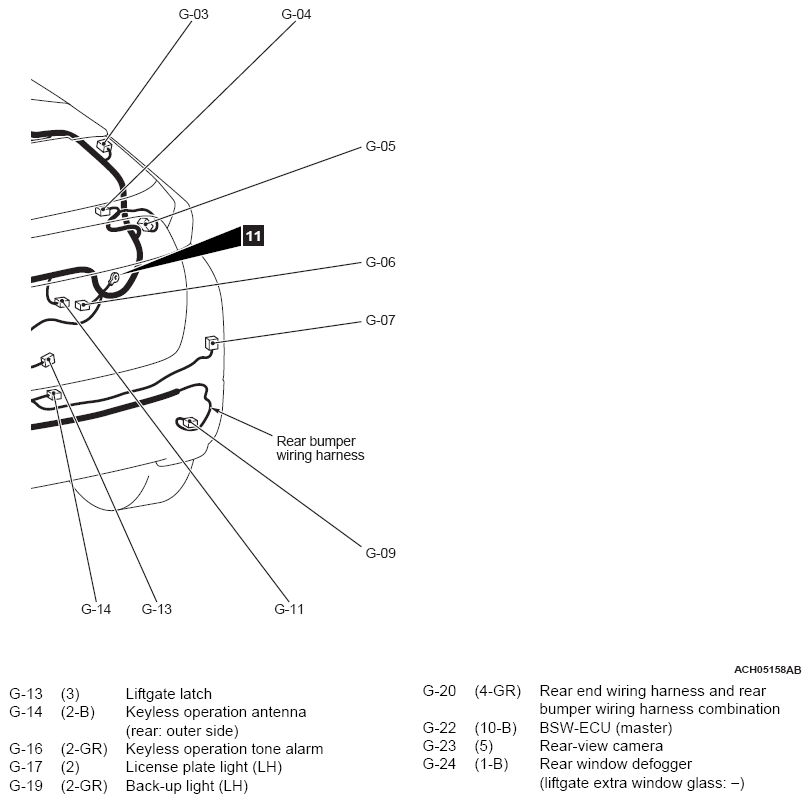

Fig 1: Liftgate Configuration Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

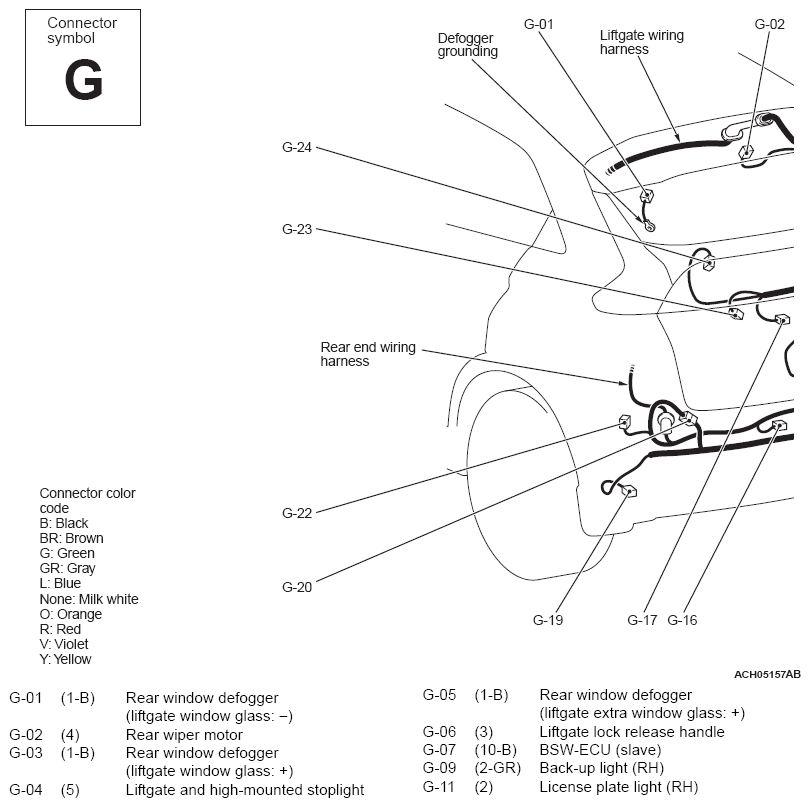

Fig 2: Liftgate Configuration Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
