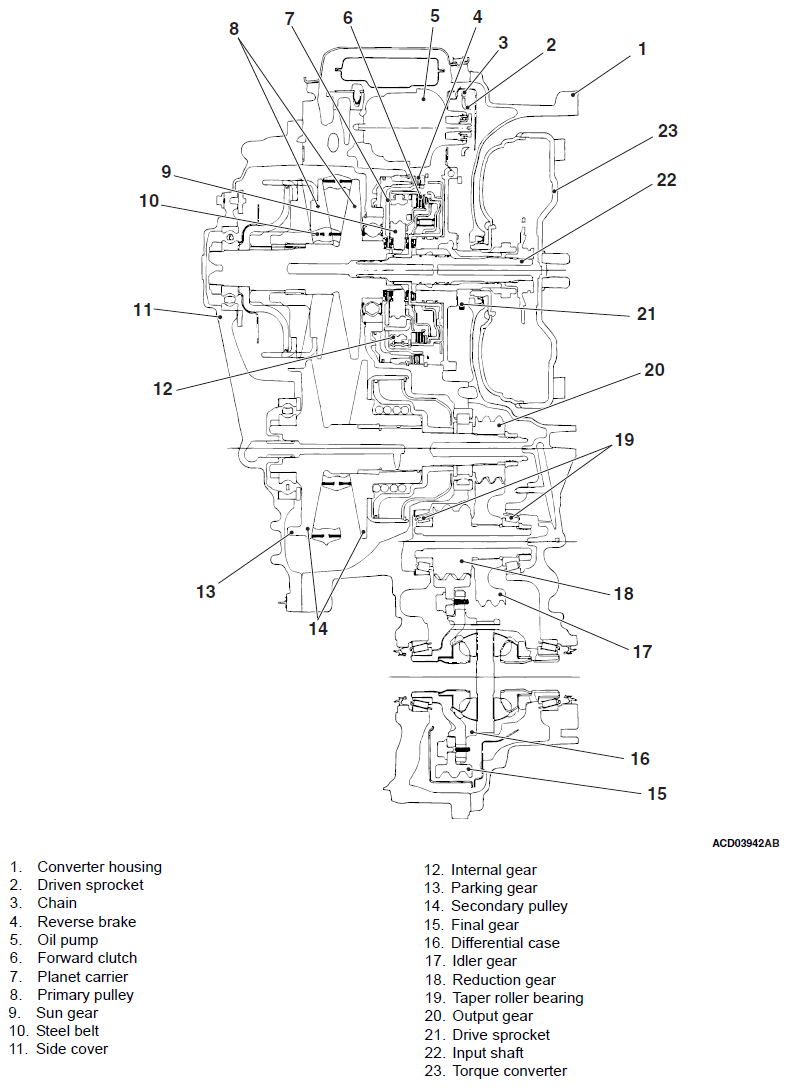

Home >> Mitsubishi >> 2018 >> Eclipse Cross ES, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Transaxle (CVT) (With Diagnostics) >> General Information >> Description Of Structure And Operation >> Sectional View
