Inspection Procedure 2: The sunshade does not open: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

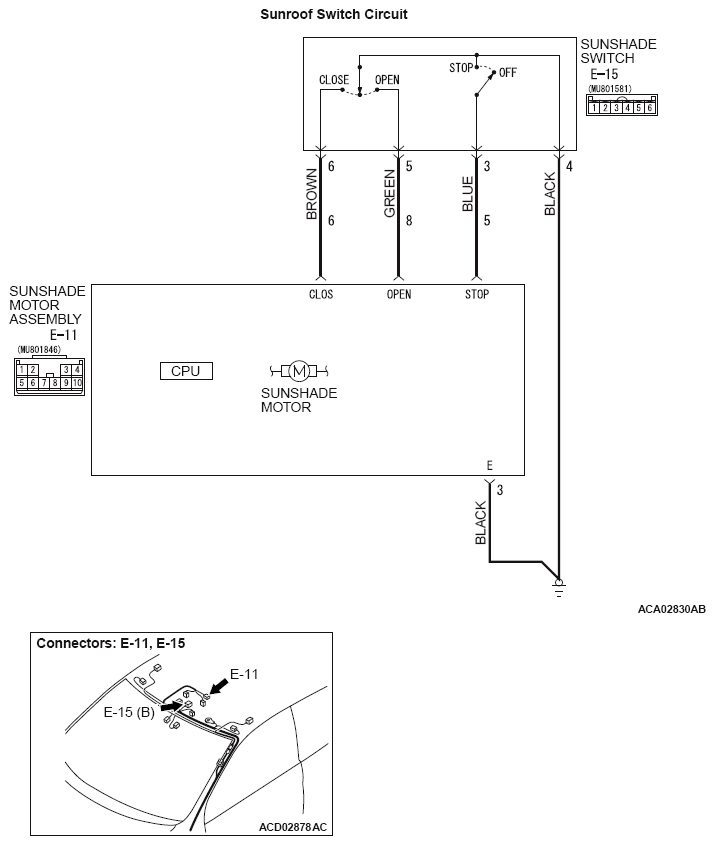

Fig 1: Sunroof Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
