Trailing Arm Bushing Replacement

Use the following special tools to remove the trailing arm bushing:
- Remover base (MB991523)
- Spacer base (MB992865)
- Arm bushing base (MB992125)

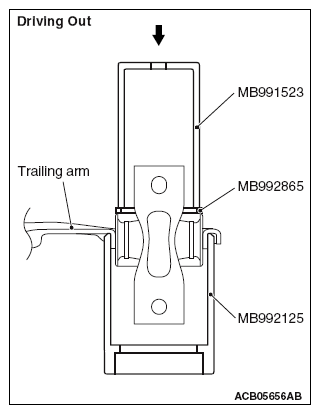

  Fig 1: Removing Trailing Arm Bushing
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Determine the installation direction and the installation position of the trailing arm bushing.
1. Install so that the protruding side of the trailing arm bushing inner pipe faces inside the body.
2. Position horizontally the trailing arm bushing to body connecting part, and locate bushing inner space as shown in the figure.

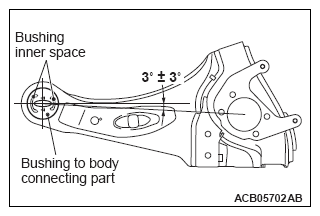

  Fig 2: Positioning Horizontally Trailing Arm Bushing To Body Connecting Part
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use the following special tools to press-fit the trailing arm bushing up to the position shown in the figure:
- Arm bushing remover and installer (MB990890)
- Spacer base (MB992865)
- Arm bushing base (MB992125)

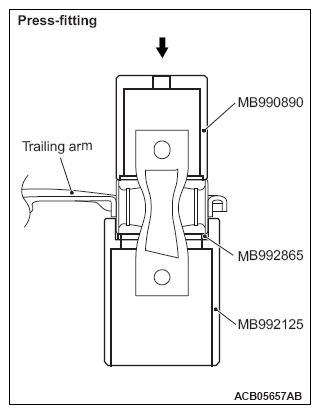

  Fig 3: Pressing Trailing Arm Bushing
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
