Removal And Installation: Notes

CAUTION:
  • The parts indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground at curb weight.
  • The parts indicated by *2 are the bolts/nuts with friction coefficient stabilizer. Prior to reinstallation, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
Pre-removal operation
  • Cargo Floor Box (LH/RH) Removal (Refer to TRIM ).
  • Rear Speaker Box Assembly Removal (RH) (Refer to SPEAKER ).
 Post-installation operation
  • Rear Speaker Box Assembly Installation (RH) (Refer to SPEAKER ).
  • Cargo Floor Box (LH/RH) Installation (Refer to TRIM ).

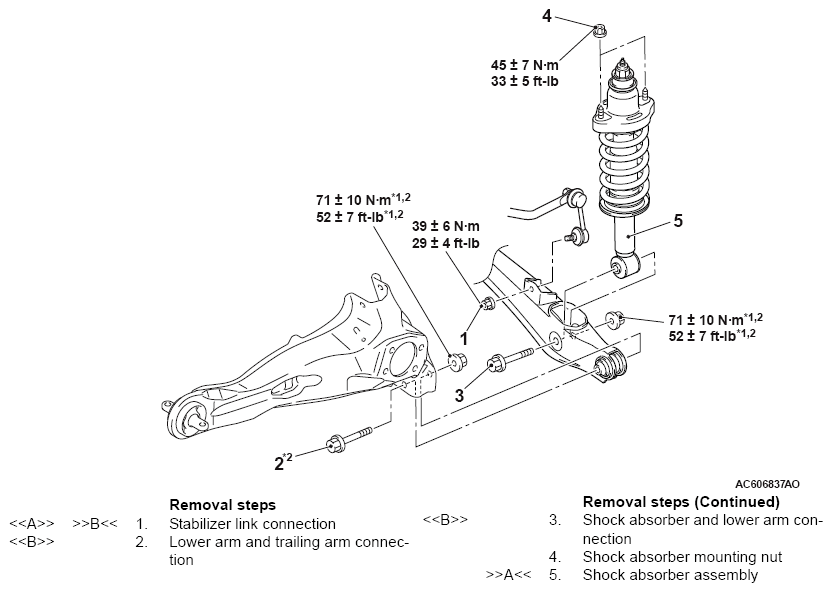

Fig 1: Removing/Installing Shock Absorber Assembly Components With Torque Specification
G10231218Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
