Disassembly And Assembly: Notes

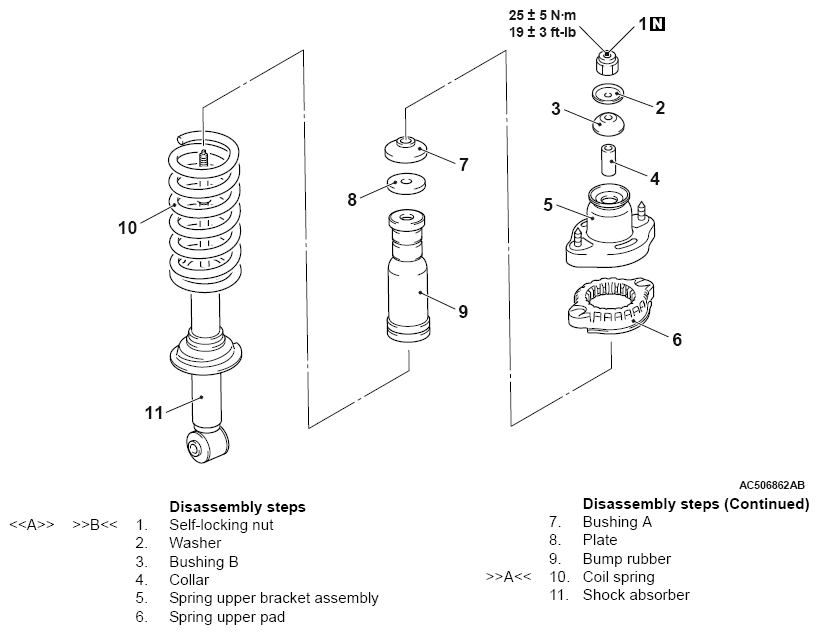

Fig 1: Disassembling/Assembling Shock Absorber Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991793: Spring Compressor Assembly
• MB991796: Attachment B
• MB991794: Upper Plate
• MB991830: Fixture
