Inspection Procedure 1: The sunshade does not work: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

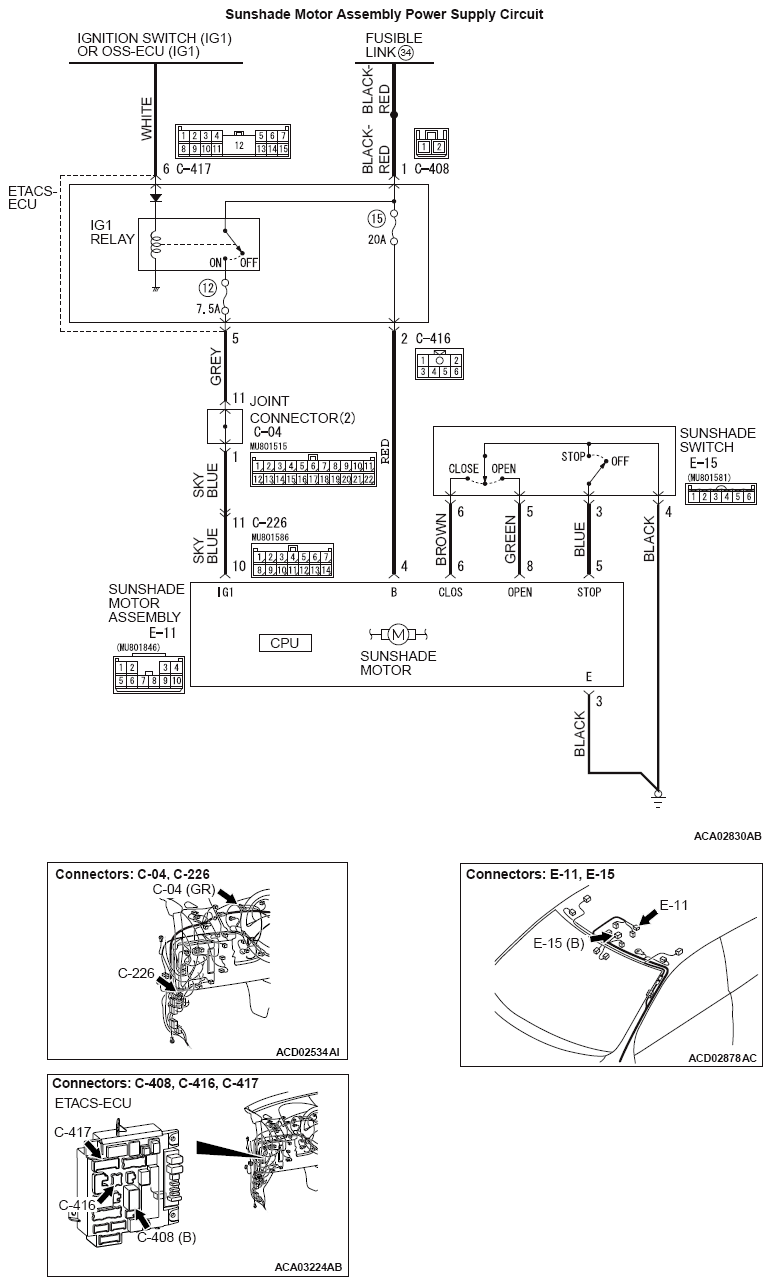

Fig 1: Sunshade Motor Assembly Power Supply Circuit Diagram
