Headlining Removal

To remove the clip, insert a vinyl cord into a clearance between the clip and the headlining, and pass it around the clip. Then, pull out the clip downwards while pulling the vinyl cord.

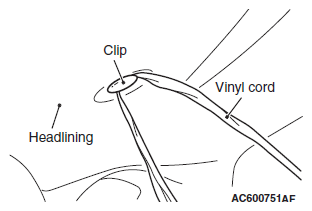

Fig 1: Identifying Clip And Vinyl Cord

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Remove the headlining by inserting the special tool in the clearance of the dual lock fastener. < Vehicles with roof window glass >

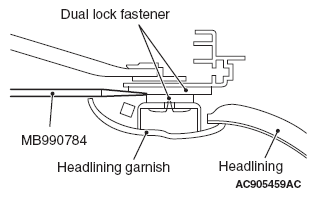

Fig 2: Inserting Special Tool In Dual Lock Fastener

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
