Shift Lock Mechanism

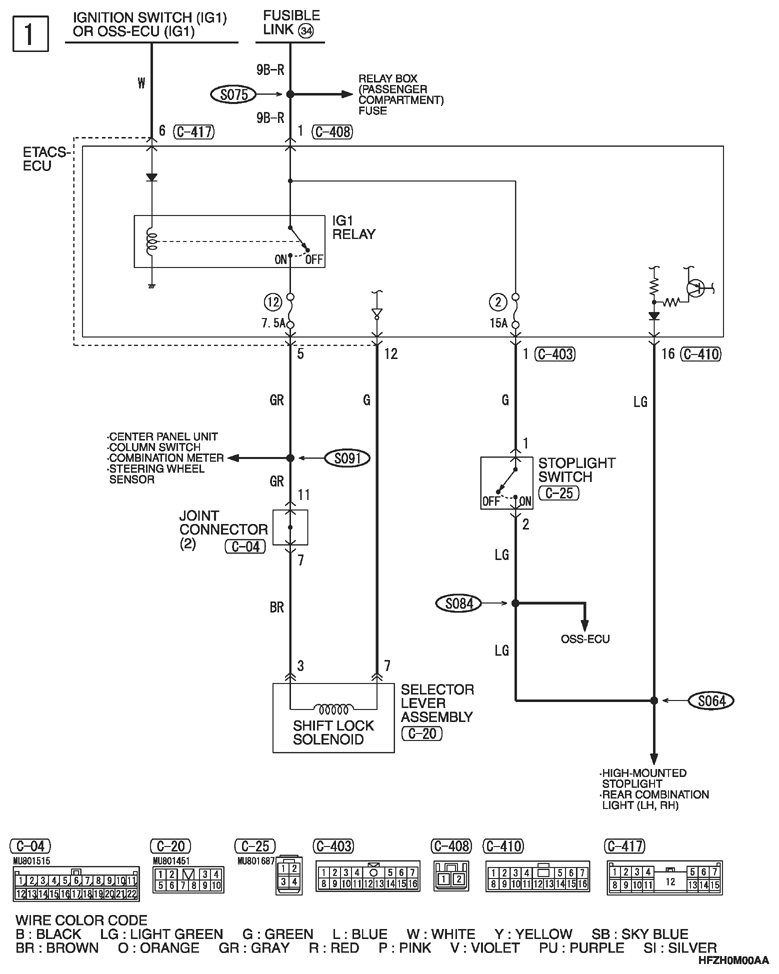

Fig 1: Shift Lock Mechanism

G10226729

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
