Power Windows

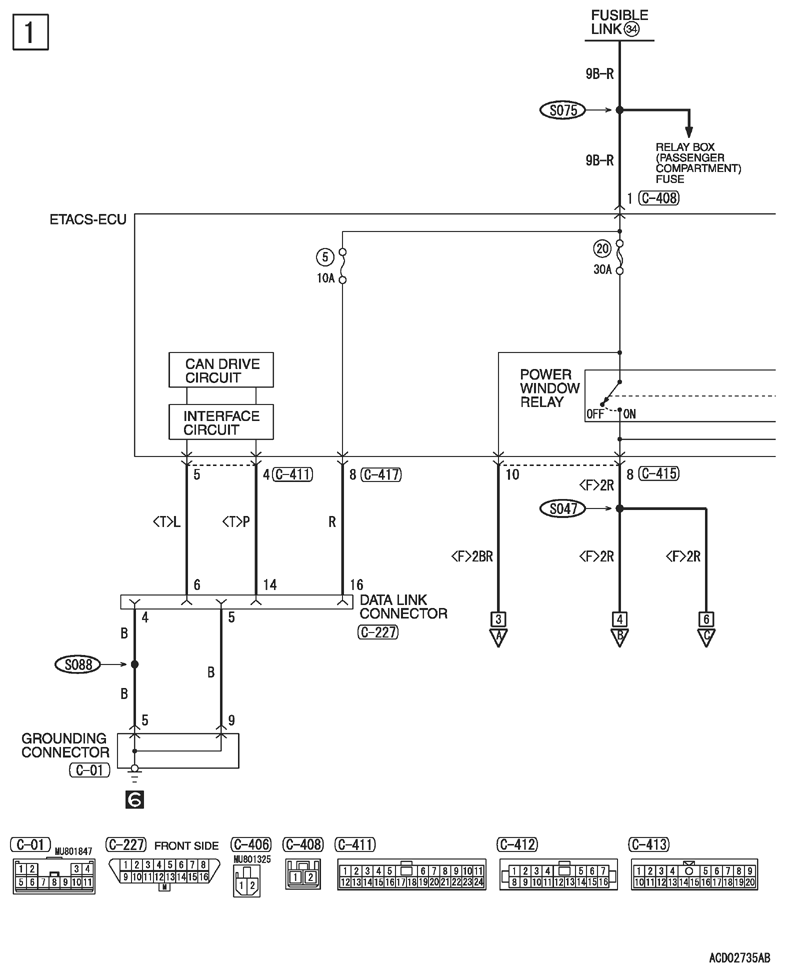

Fig 1: Power Windows Circuit Diagram (1 Of 6)

G10226819

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

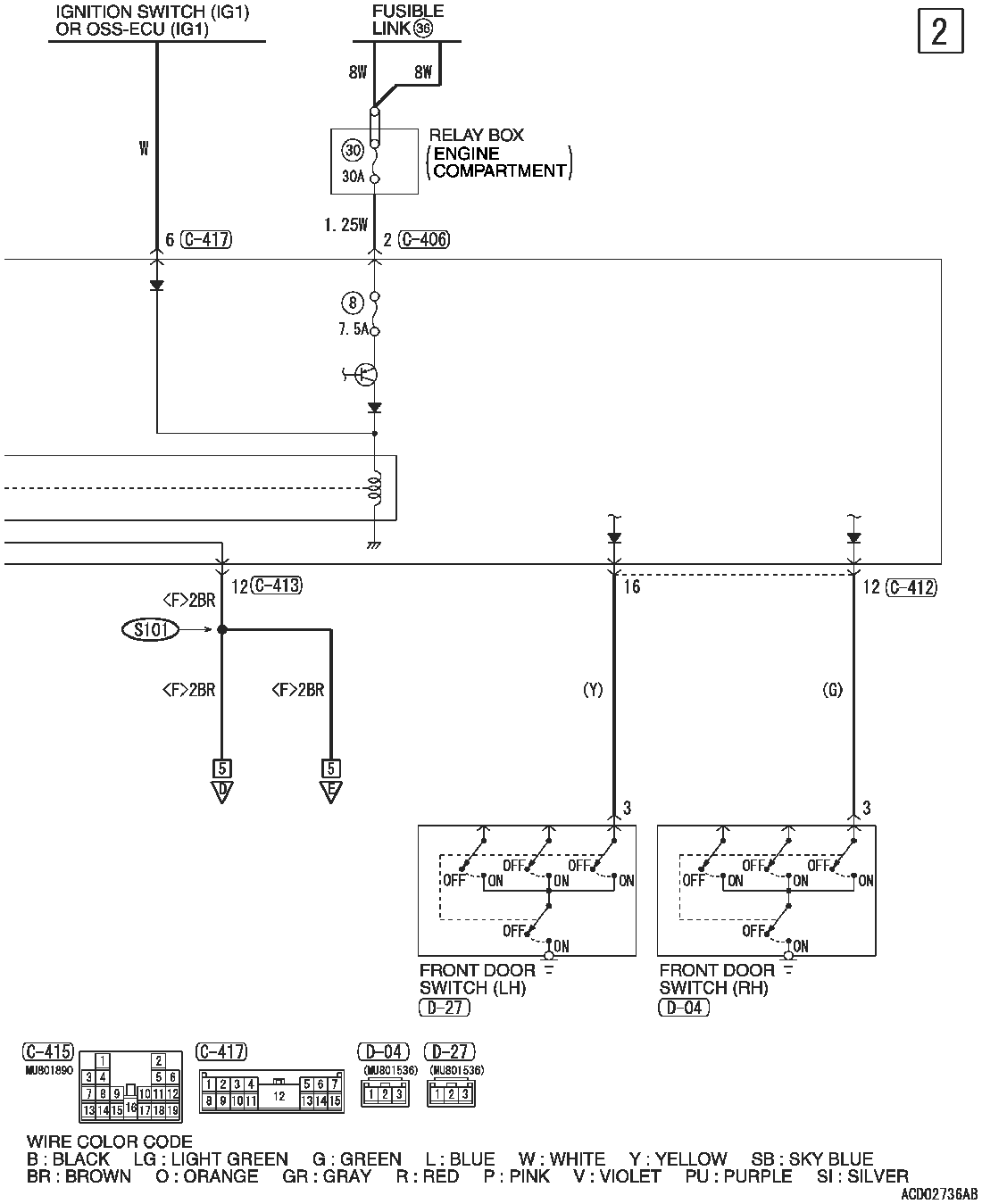

Fig 2: Power Windows Circuit Diagram (2 Of 6)

G10226820

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

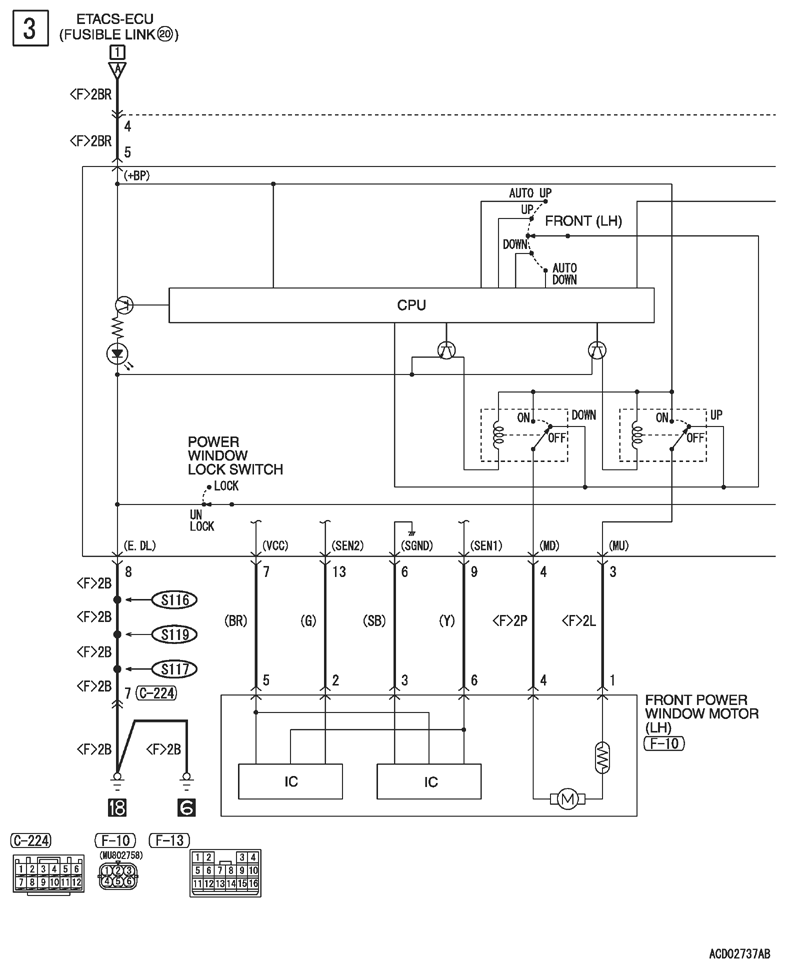

Fig 3: Power Windows Circuit Diagram (3 Of 6)

G10226821

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

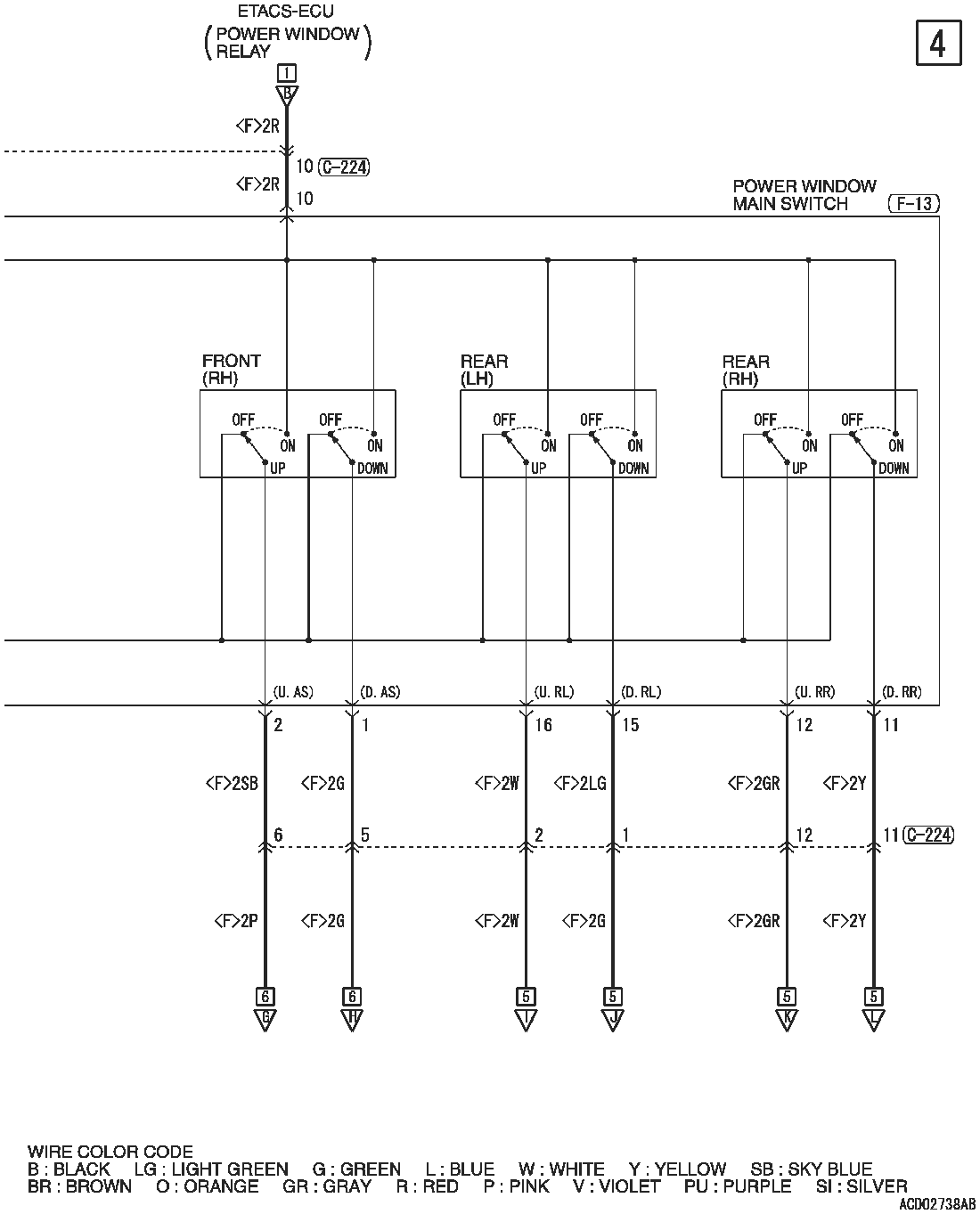

Fig 4: Power Windows Circuit Diagram (4 Of 6)

G10226822

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

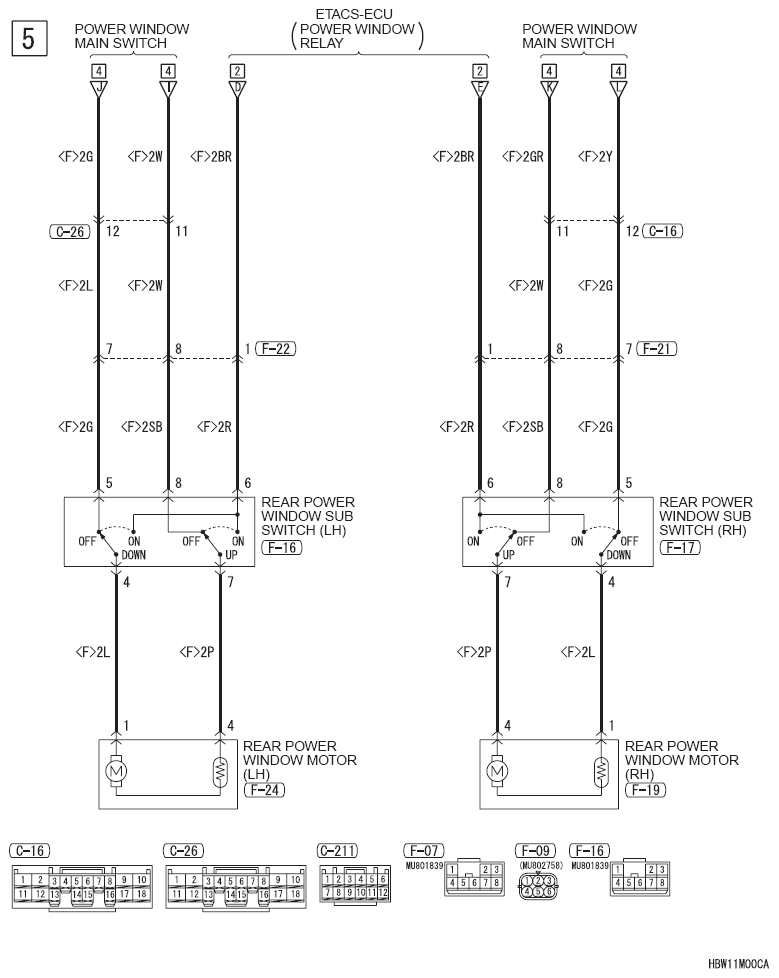

Fig 5: Power Windows Circuit Diagram (5 Of 6)

G07056865

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

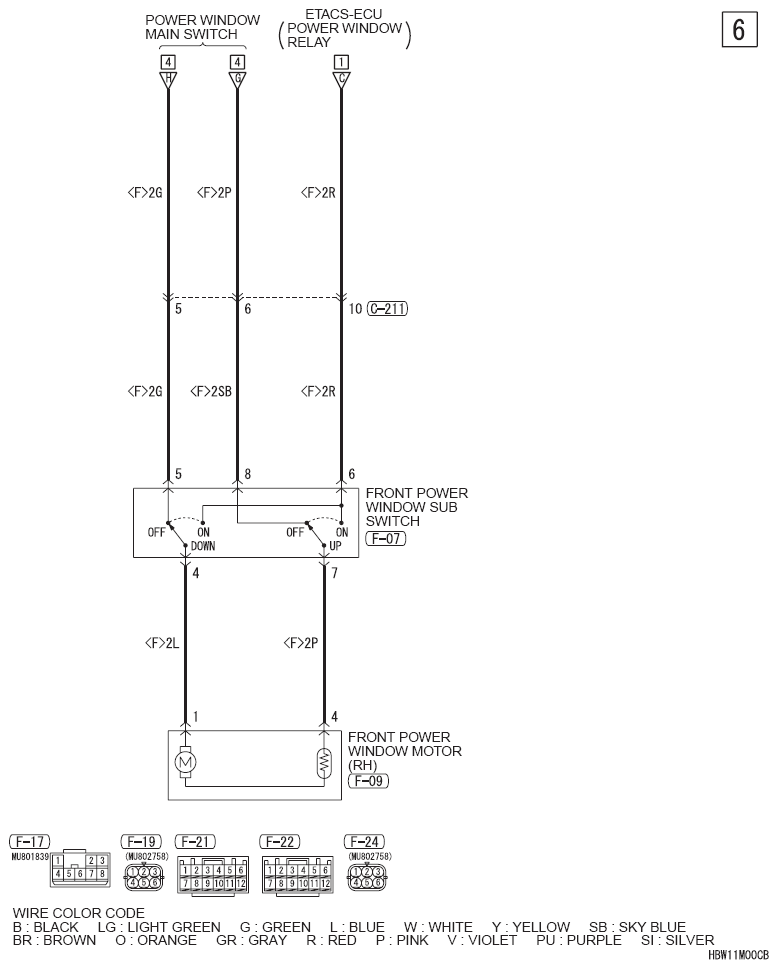

Fig 6: Power Windows Circuit Diagram (6 Of 6)

G07056866

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
