One Touch Start System

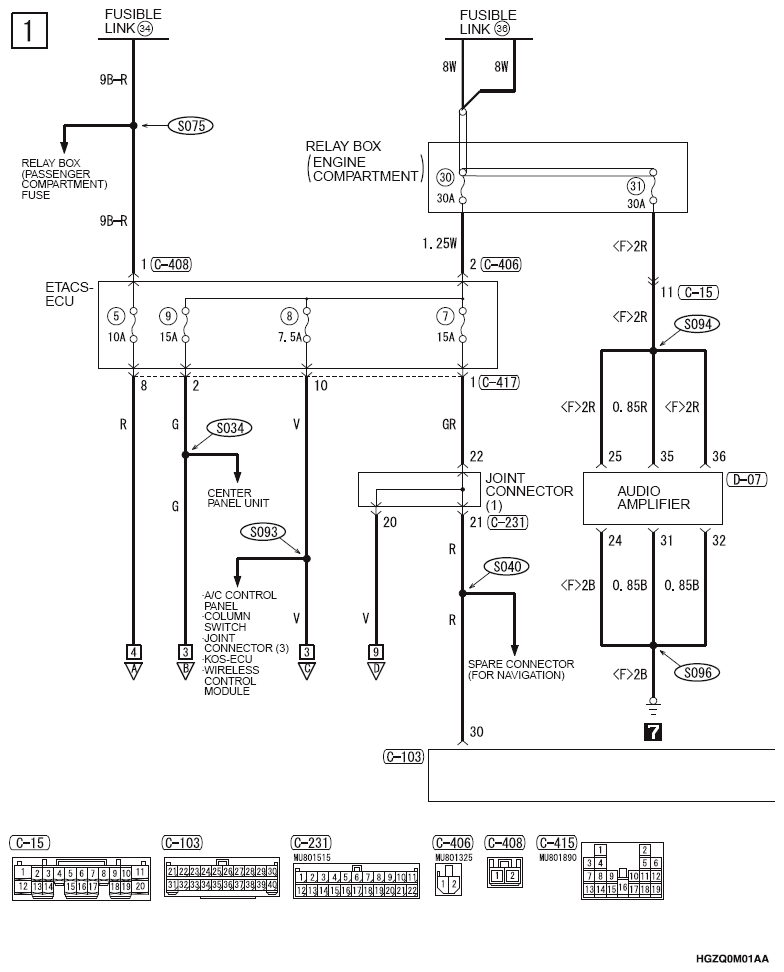

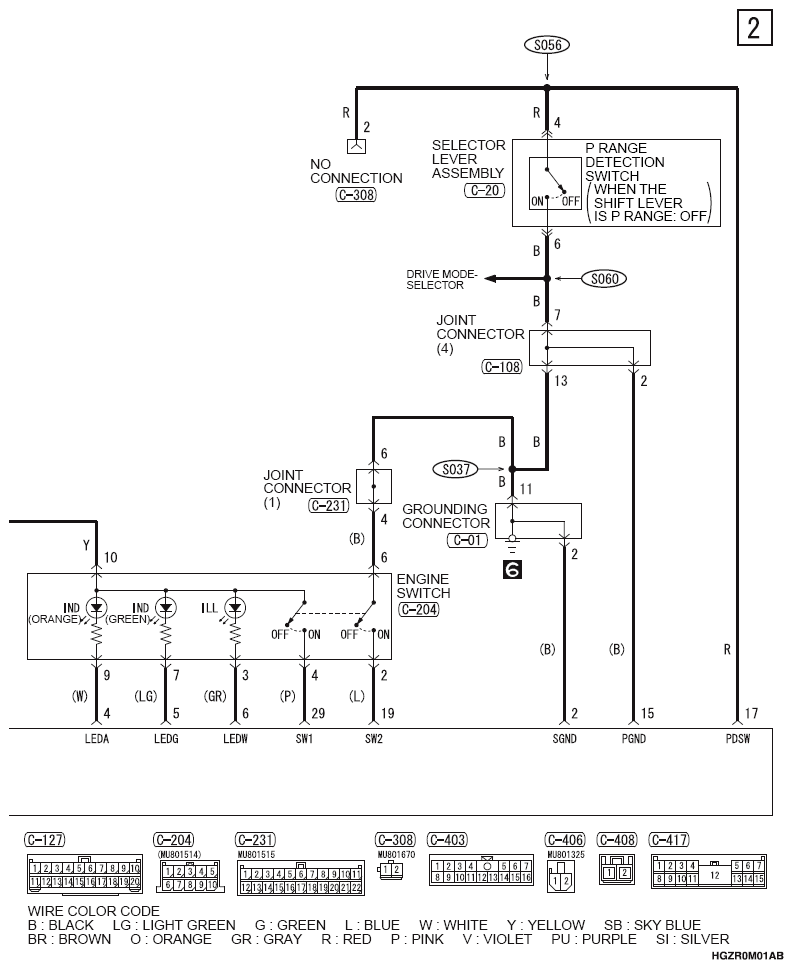

Fig 1: One Touch Start System Circuit Diagram (1 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: One Touch Start System Circuit Diagram (2 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

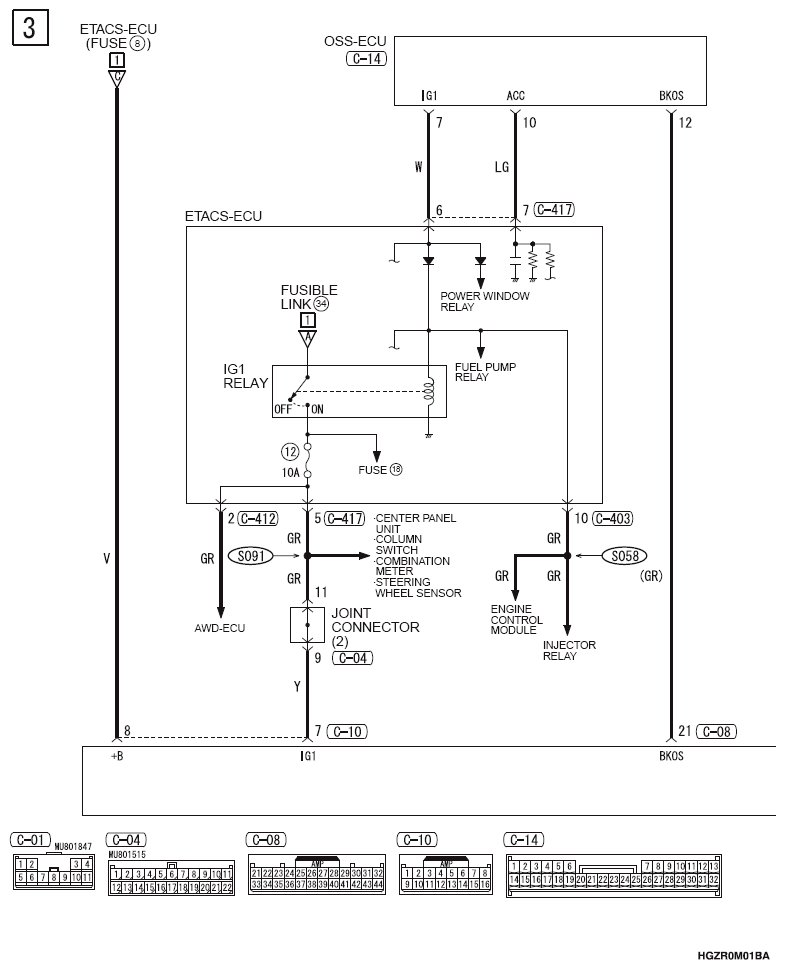

Fig 3: One Touch Start System Circuit Diagram (3 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

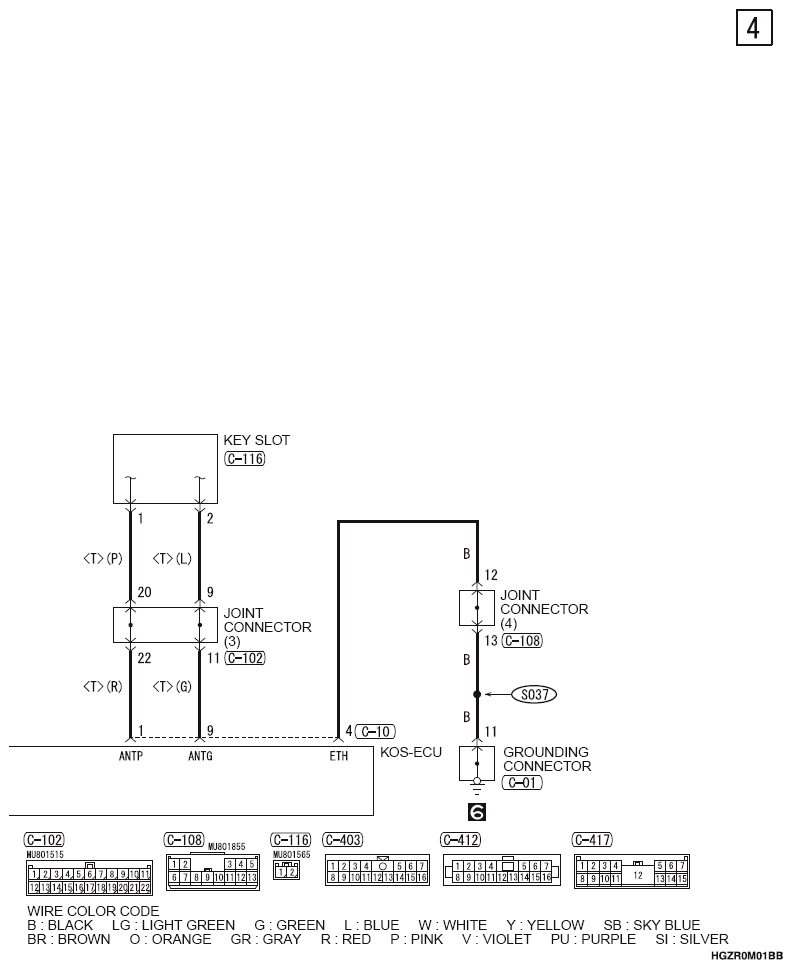

Fig 4: One Touch Start System Circuit Diagram (4 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

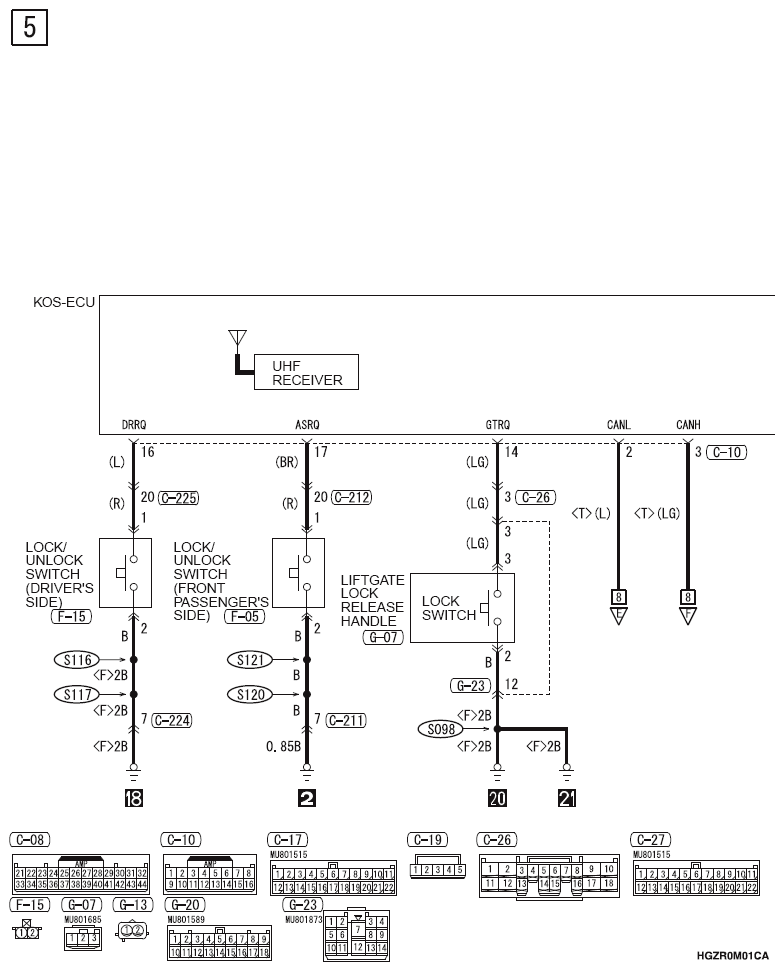

Fig 5: One Touch Start System Circuit Diagram (5 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

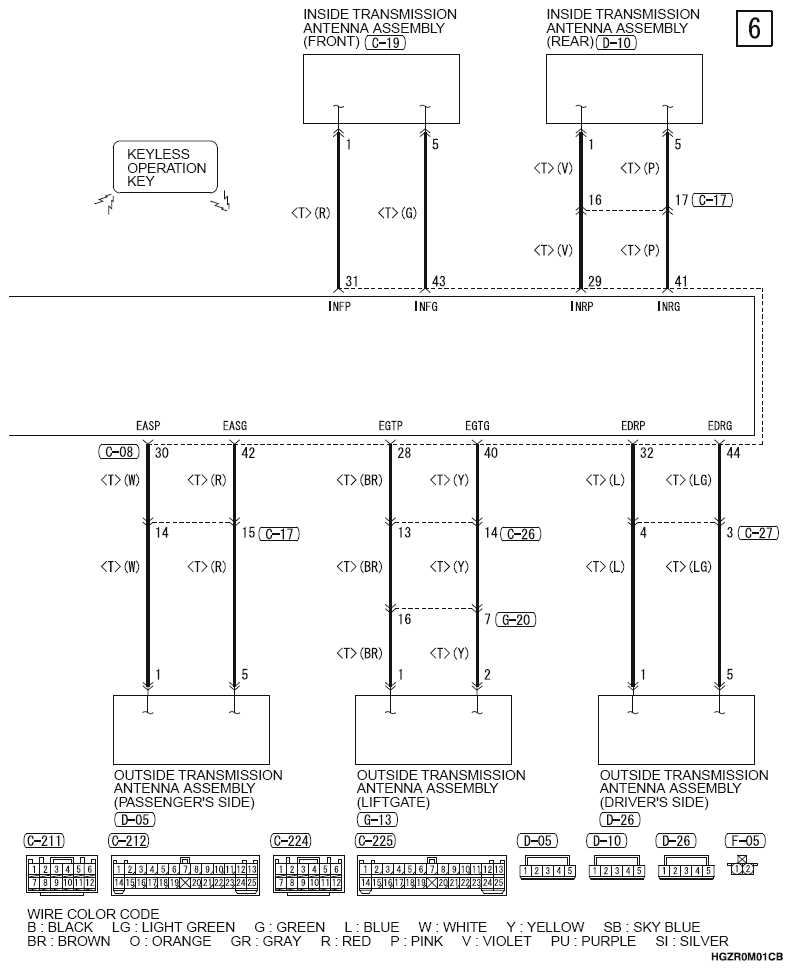

Fig 6: One Touch Start System Circuit Diagram (6 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

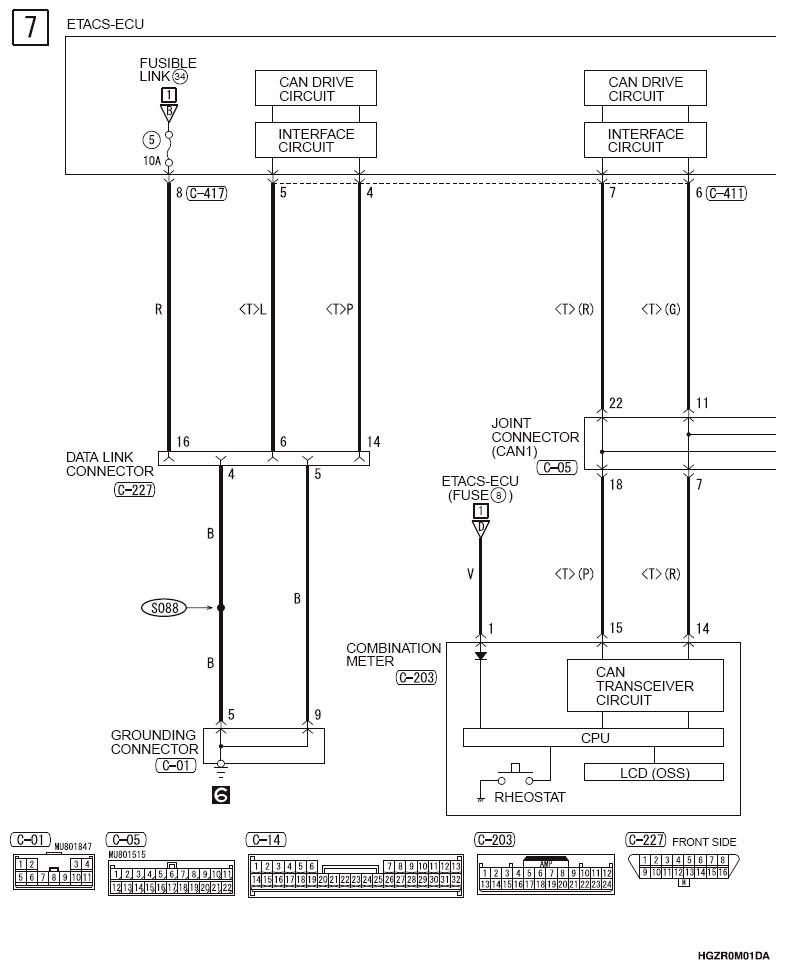

Fig 7: One Touch Start System Circuit Diagram (7 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

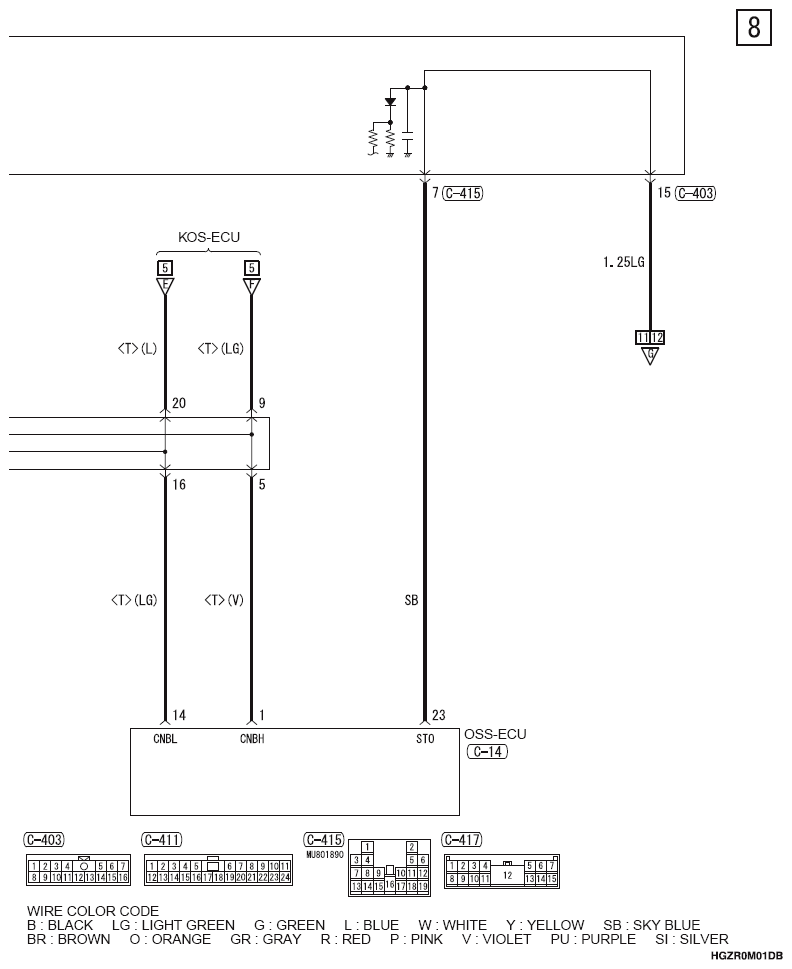

Fig 8: One Touch Start System Circuit Diagram (8 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

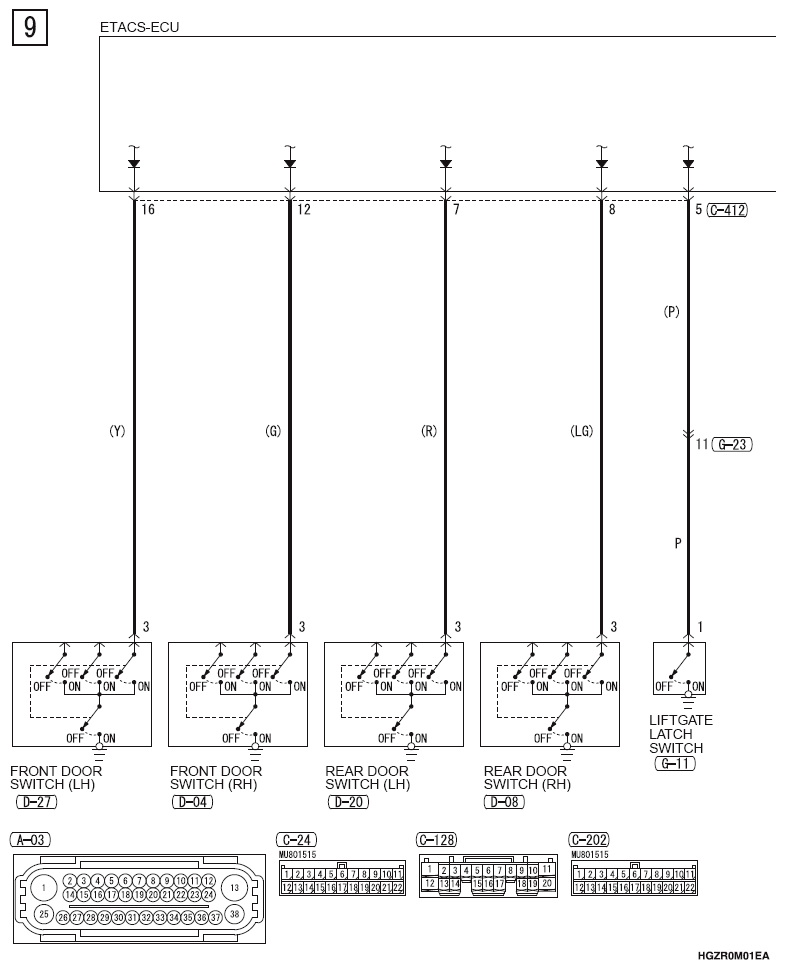

Fig 9: One Touch Start System Circuit Diagram (9 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

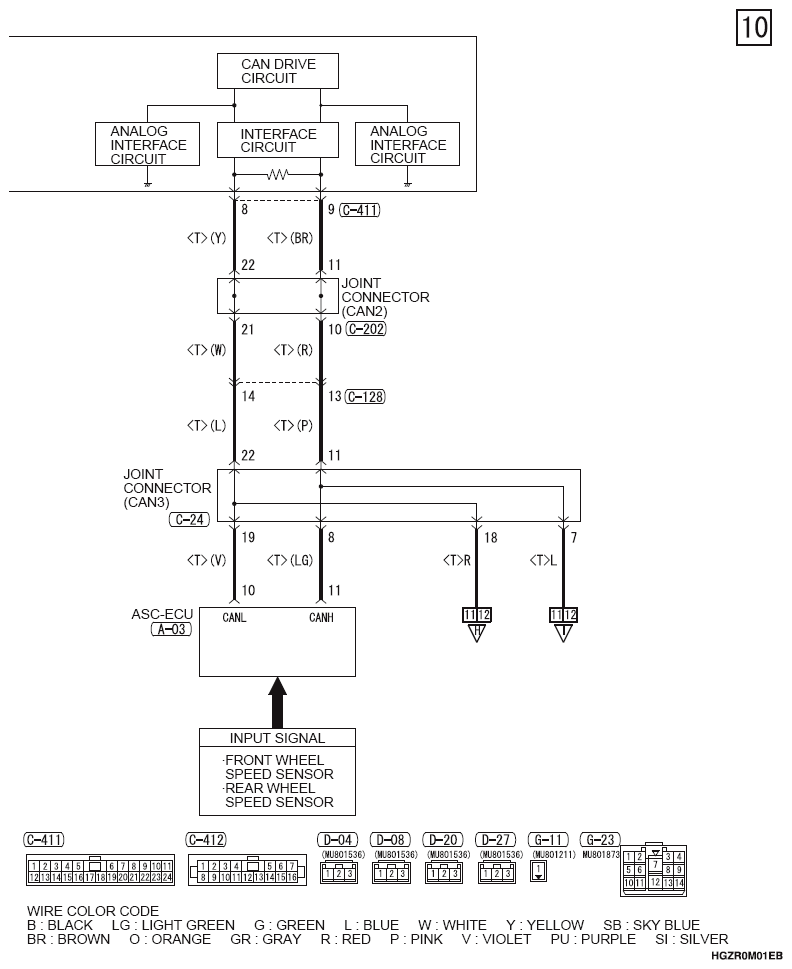

Fig 10: One Touch Start System Circuit Diagram (10 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

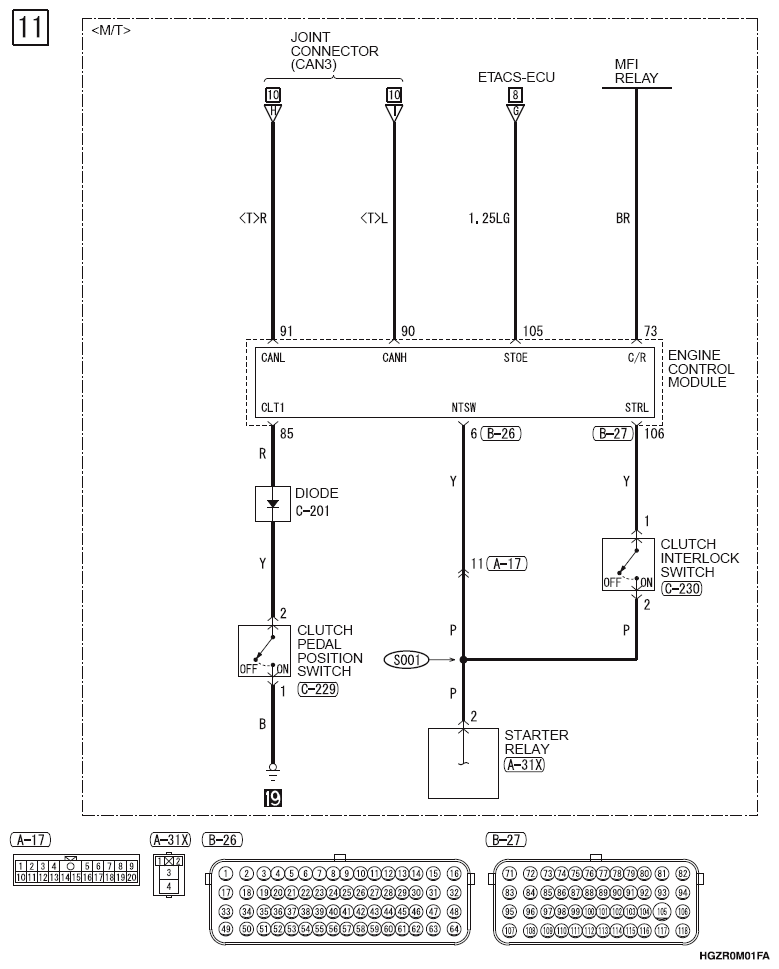

Fig 11: One Touch Start System Circuit Diagram (11 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

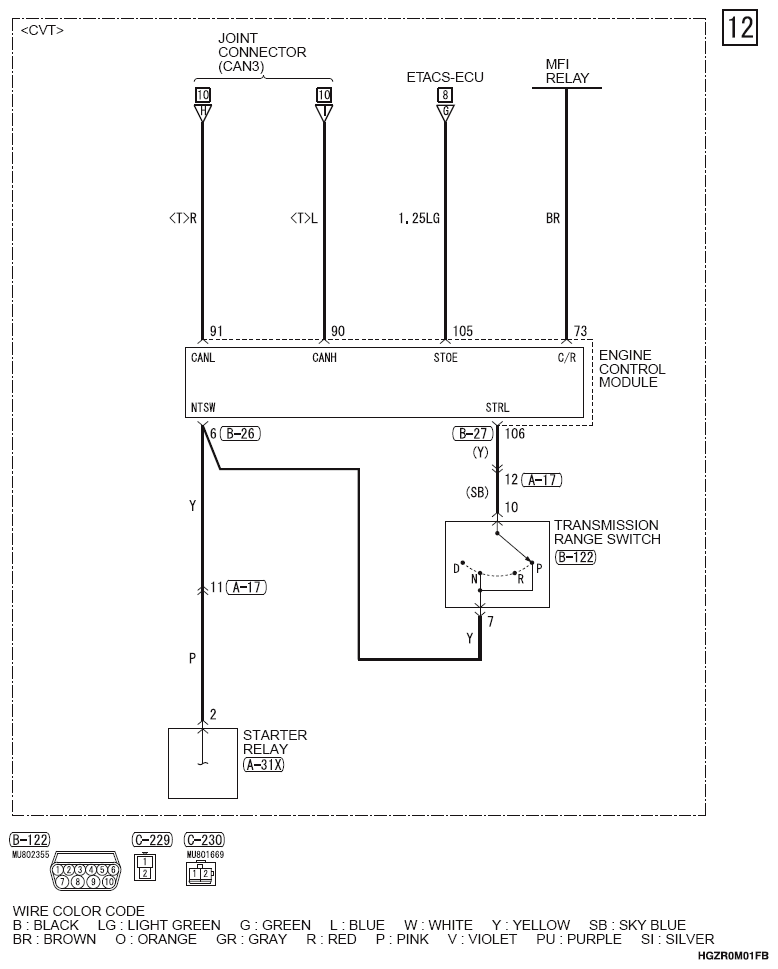

Fig 12: One Touch Start System Circuit Diagram (12 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
