Wiring Diagrams
>>
Circuit Diagrams W/ Connector End Views
>>
Ignition System
Ignition System

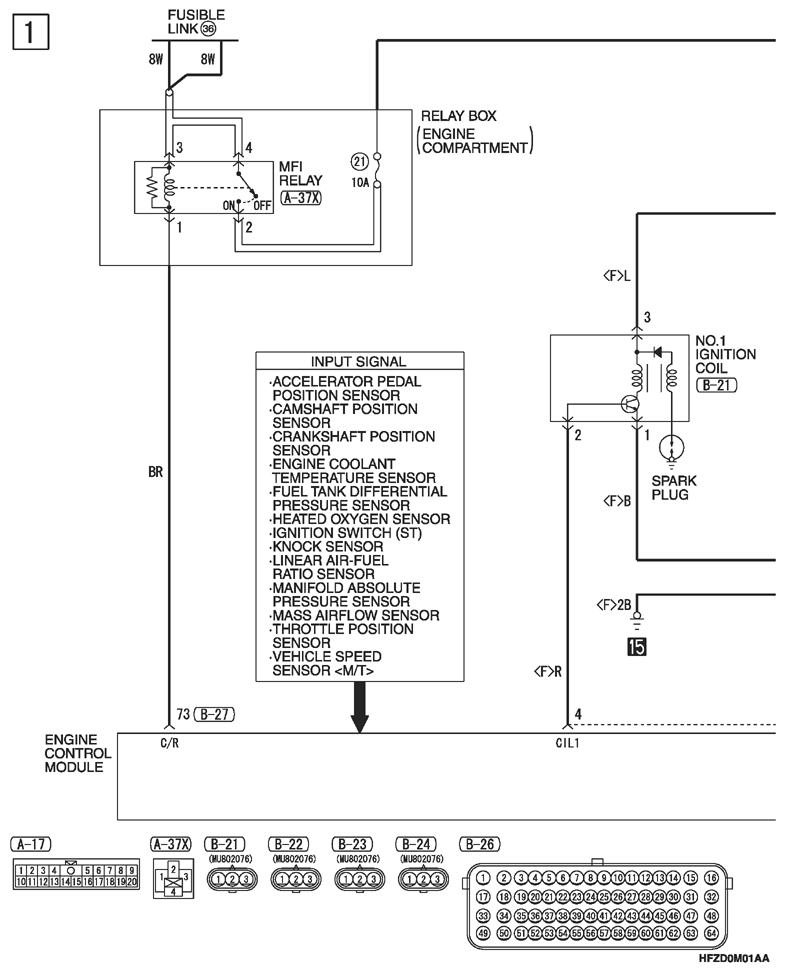

Fig 1: Ignition System Circuit Diagram (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

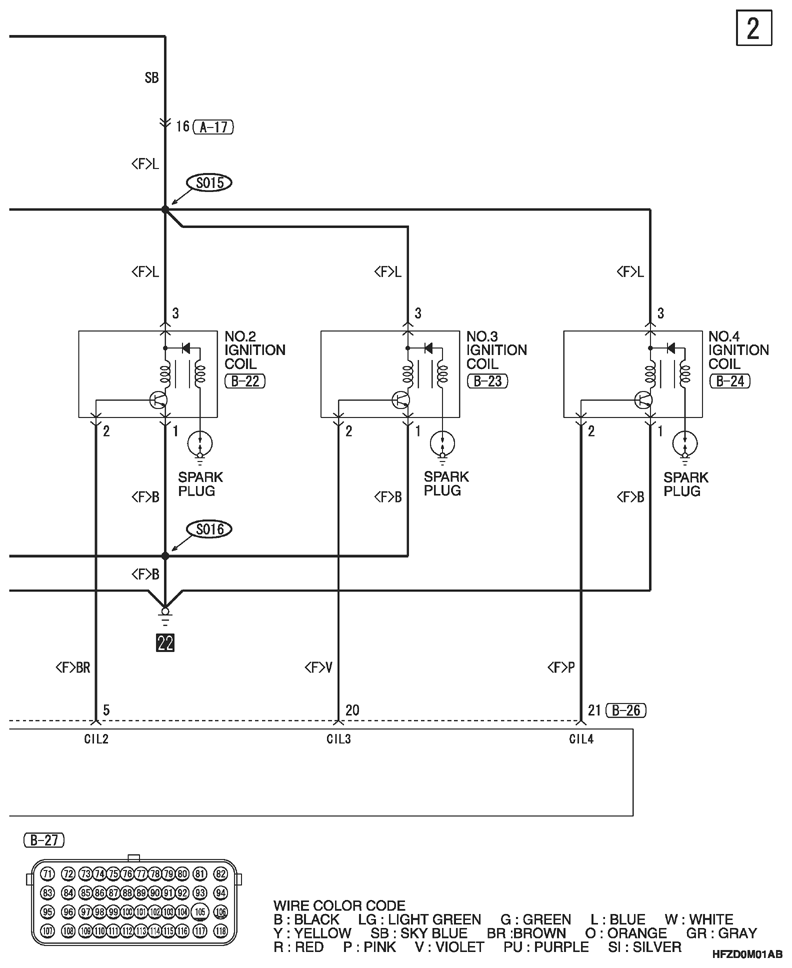

Fig 2: Ignition System Circuit Diagram (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Ignition System Circuit Diagram (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
