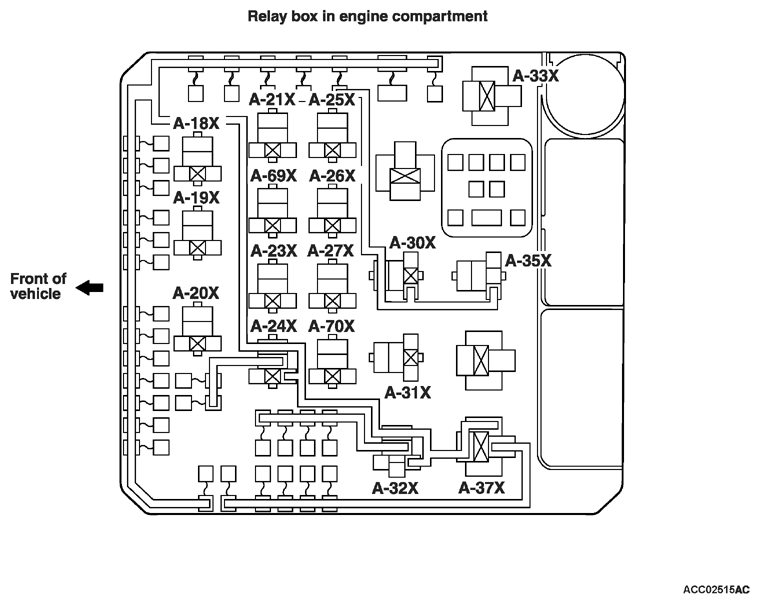

Centralized Relay
| Connector No. | Name |
|---|---|
| A-18X | Fog light relay |
| A-19X | Horn relay |
| A-20X | A/C compressor and clutch relay |
| A-21X | Theft-alarm horn relay |
| A-22X | - |
| A-23X | - |
| A-24X | Headlight relay (High) |
| A-25X | Throttle actuator control motor relay |
| A-26X | - |
| A-27X | Daytime running light relay <Vehicles with front bumper type> |
| A-28X | - |
| A-29X | - |
| A-30X | Condenser fan relay |
| A-31X | Starter relay |
| A-32X | Headlight relay (Low) |
| A-33X | Radiator fan relay |
| A-35X | Fan control relay |
| A-37X | MFI relay |
| A-69X | CVT control relay <2.4L Engine> |
| A-70X | Injector relay |
