Select Lever Shoe Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply grease to the select lever shoe hole and bellcrank pin.

    Specified grease: Mitsubishi Motors Genuine Part No. 0101011 or equivalent

  2. Install the select lever shoe to the bellcrank.
    Fig 1: Applying Grease To Select Lever Shoe Hole
    G07047529Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

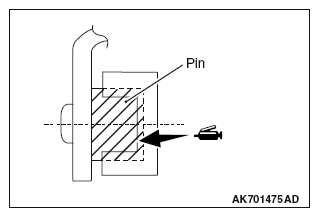

    Fig 2: Applying Grease To Bellcrank Pin
    G09669560Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
