Home >> Mitsubishi >> 2017 >> RVR GT >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul (2.4L Engine) >> Oil Pan And Timing Chain Case >> Removal And Installation >> Notes

Removal And Installation: Notes

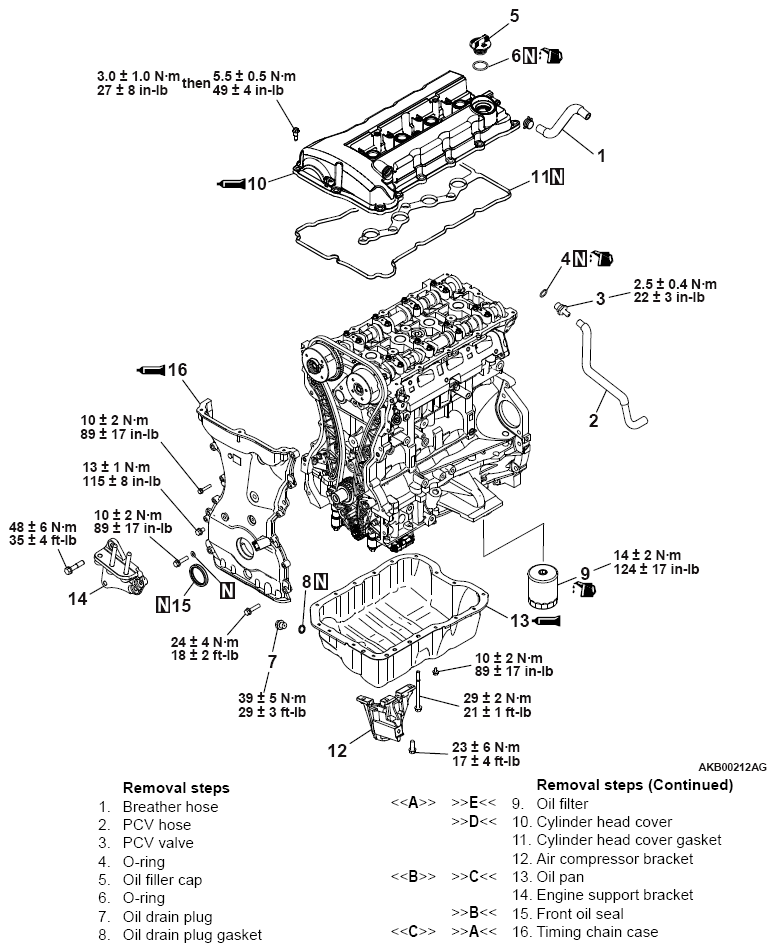

Fig 1: Identifying Oil Pan And Timing Chain Case Related Components With Torque Specifications
G10227701Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
