Home >> Mitsubishi >> 2017 >> RVR GT >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul (2.4L Engine) >> Cylinder Head And Valves >> Removal And Installation >> Notes

Removal And Installation: Notes

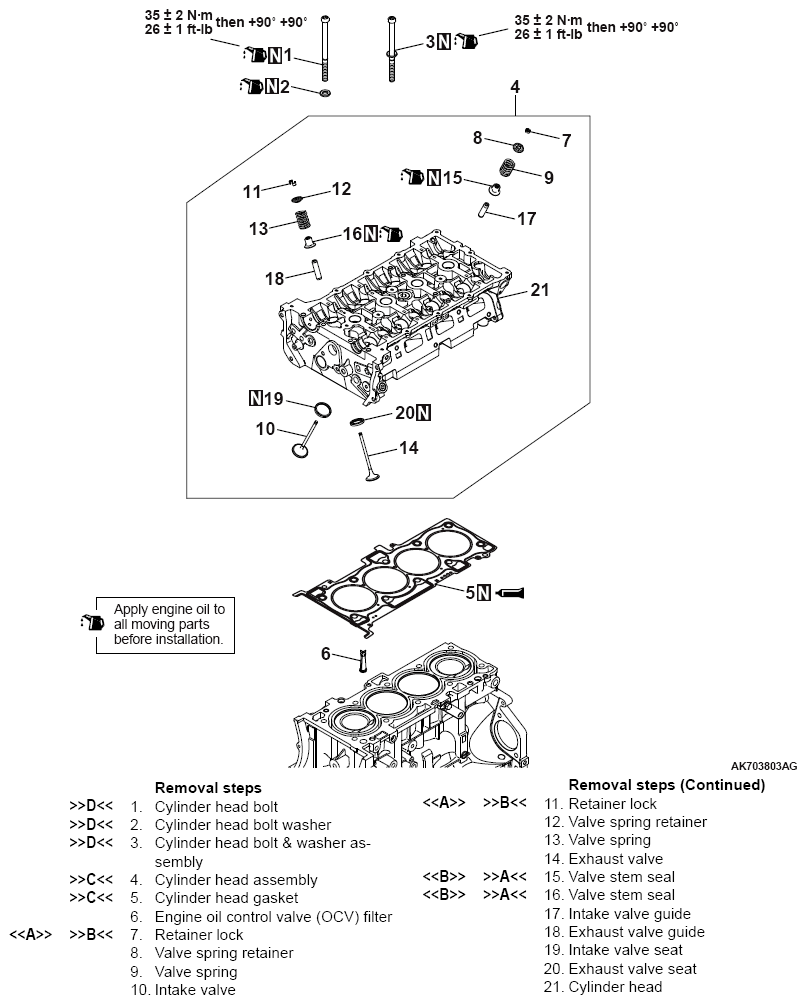

Fig 1: Identifying Cylinder Head And Valve Related Components
G10227753Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
