Ladder Frame Removal

  1. Pry the illustrated position with a screwdriver or tap the boss with a hammer.
    Fig 1: Prying With Screwdriver To Remove Ladder Frame
    G05374332Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

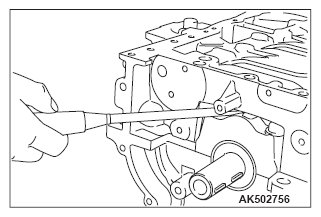

  2. If the ladder frame does not come off, insert a flatblade screwdriver into the gap between the ladder frame and bearing cap as shown in the illustration and lightly pry it to remove the ladder frame.
    Fig 2: Prying With Screwdriver In Gap Between Ladder Frame And Bearing Cap
    G07046170Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
