Notes
Removal And Installation: Notes
Pre-removal operation
Engine coolant Draining (Refer to
ENGINE COOLANT LEAK CHECK
).
Air Cleaner Assembly Removal (Refer to
AIR CLEANER
).
Post-installation operation
Air Cleaner Assembly Installation (Refer to
AIR CLEANER
).
Engine Coolant Refilling and Check (Refer to
ENGINE COOLANT LEAK CHECK
).

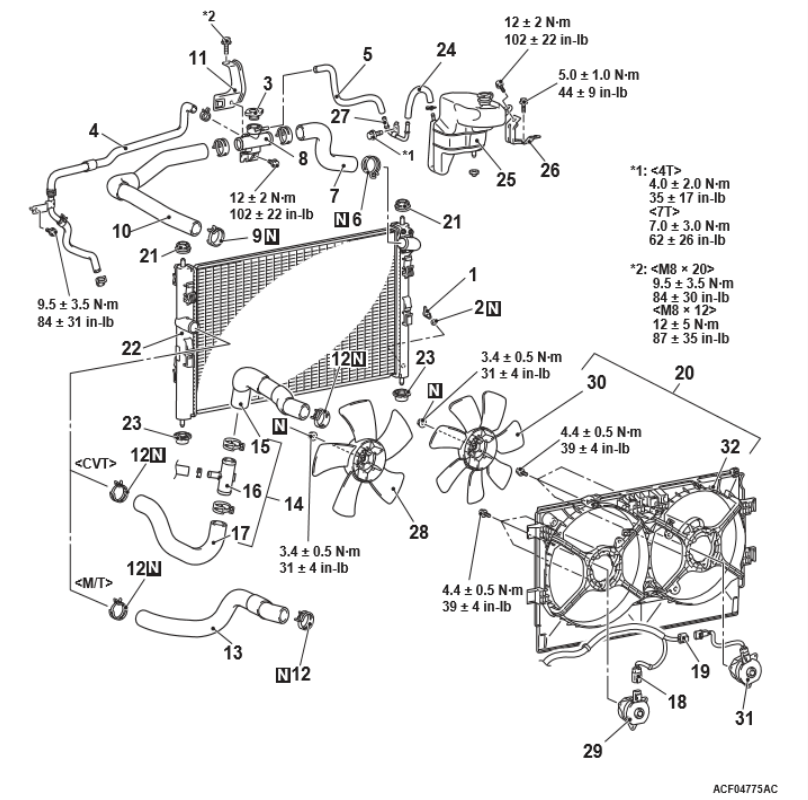

Fig 1: Radiator Components With Torque Specifications (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

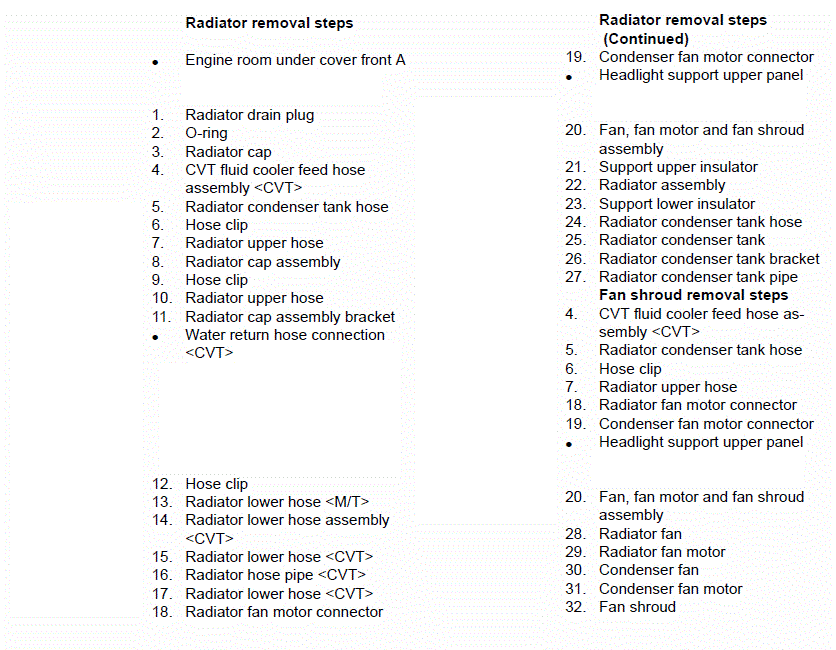

Fig 2: Radiator Component Removal Procedures (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
