Engine Compartment

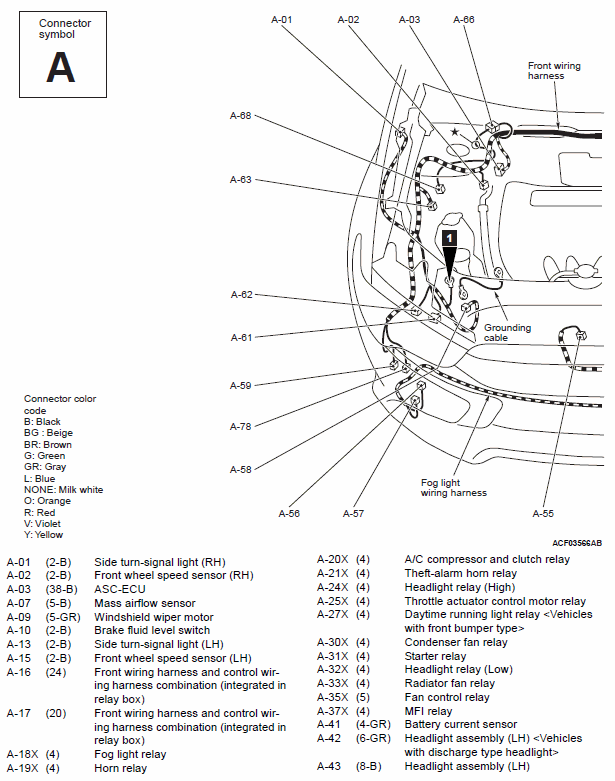

Fig 1: Engine Compartment Wiring Harness Diagram (1 Of 2)
G00557980Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

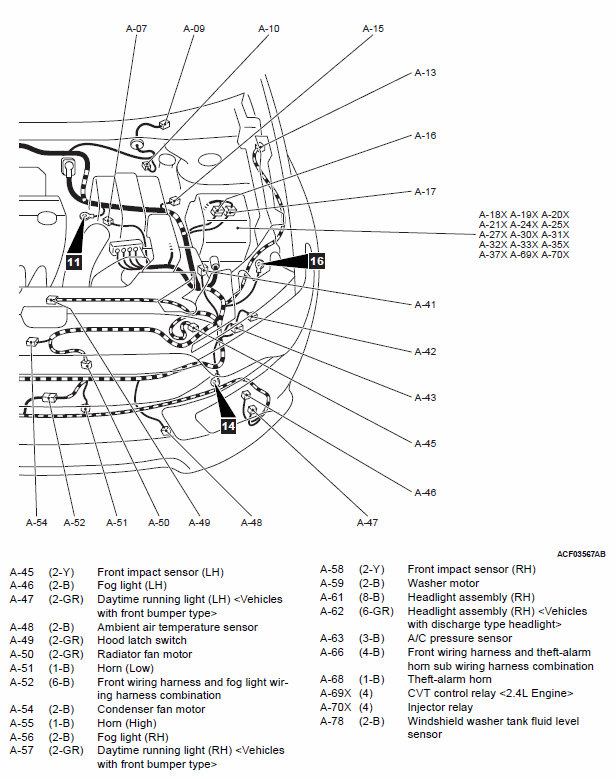

Fig 2: Engine Compartment Wiring Harness Diagram (2 Of 2)
G00557981Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
