Removal And Installation

NOTE: When replacing the battery of the vehicles with sub battery, always replace the main and sub battery at the same time. If the batteries are not replaced at the same time, the service lives will be shorter.
CAUTION: If the battery current sensor or engine control module is replaced, make the battery current sensor learn the zero point. (Refer to BATTERY CURRENT SENSOR CALIBRATION .)

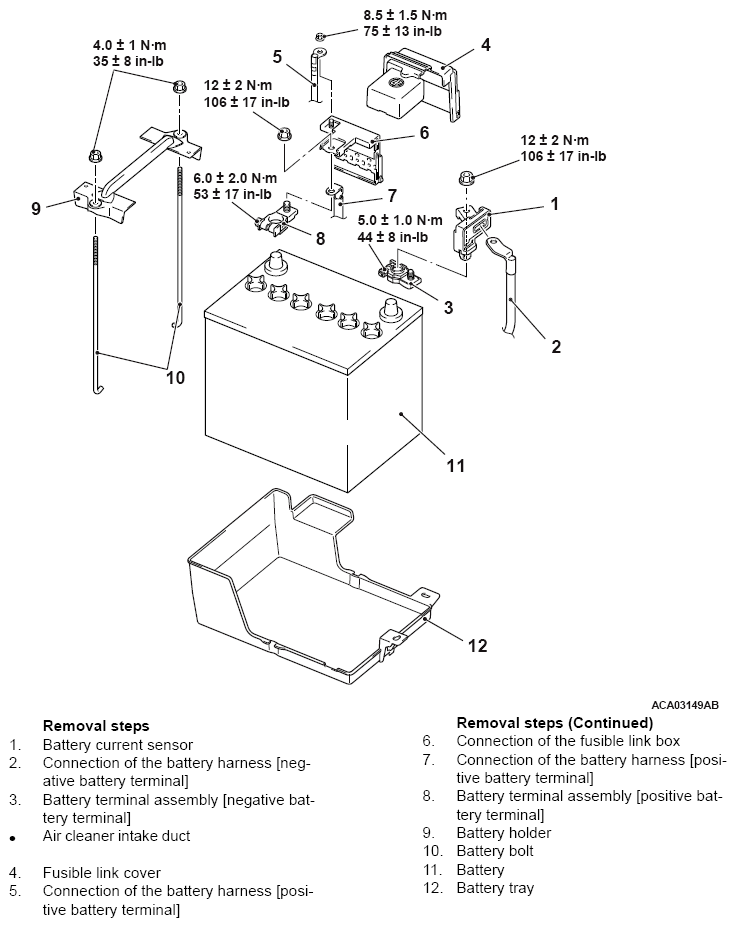

Fig 1: Removing/Installing Battery Components With Torque Specification
G10232518Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
