Removal And Installation Rear: AWD

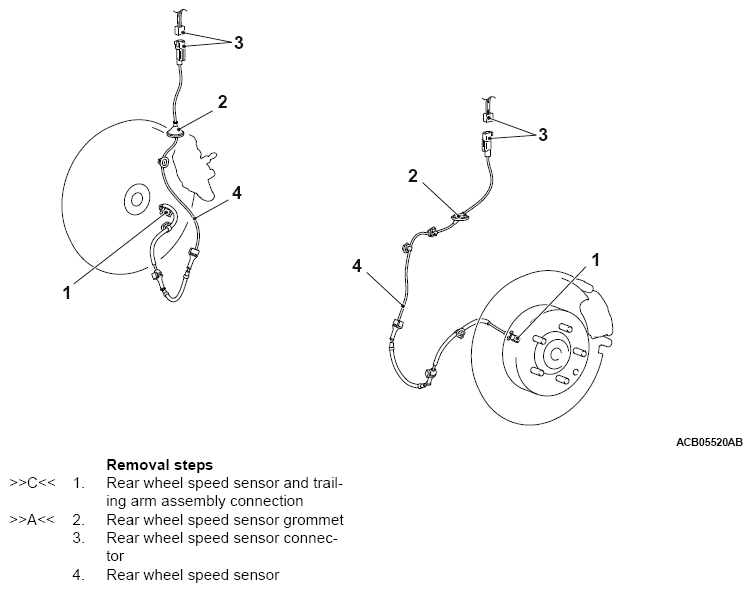

Fig 1: Identifying Wheel Speed Senor And Related Components With Torque Specifications (AWD)
G10231394Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The vehicle speed detection encoder is integrated with the rear hub assembly, which cannot be disassembled.
