Brake Tube Connection
CAUTION:
After connecting the brake pipe, check that the brake pipe is secured into the vehicle body side fixing clips.

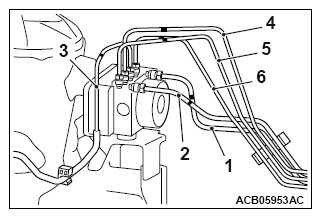

Install the brake pipe to the hydraulic unit as shown in the figure.
- From master cylinder (primary)
- From master cylinder (secondary)
- To front brake (RH)
- To front brake (LH)
- To rear brake (LH)
- To rear brake (RH)
