Control Shift Retainer Gasket Installation

Install the control shift retainer gasket to the control shaft cover with the projection of the gasket in the illustrated position.

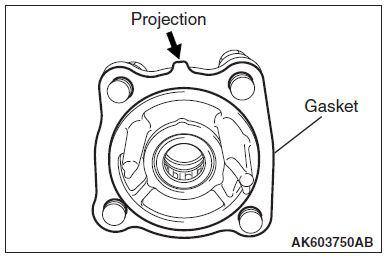

Fig 1: Locating Conrtal Shaft Gasket Projection
G05375667Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
