Slotted Spring Pin Installation

Drive in the slotted spring pin to the illustrated dimension.

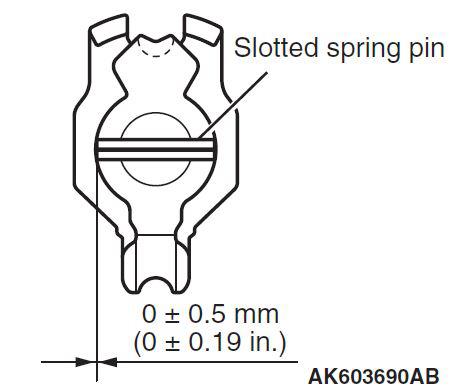

Fig 1: Slotted Spring Pin Dimension (1 Of 2)
G05375695Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.


Drive in the slotted spring pin to the illustrated dimension.

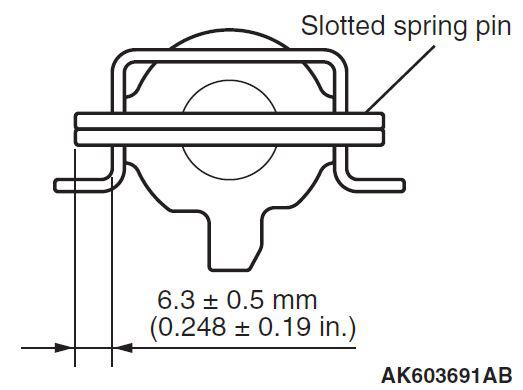

Fig 1: Slotted Spring Pin Dimension (2 Of 2)
G05375696Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
