Removal And Installation

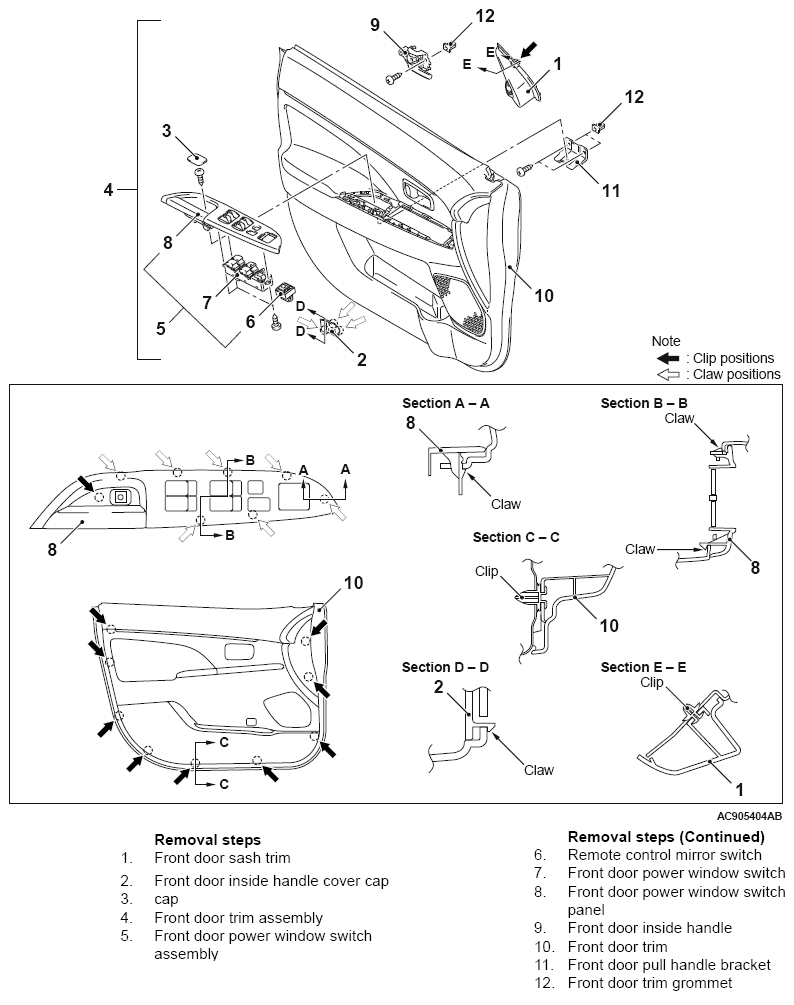

Fig 1: Removing/Installing Front Door Trim Components
G10231945Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

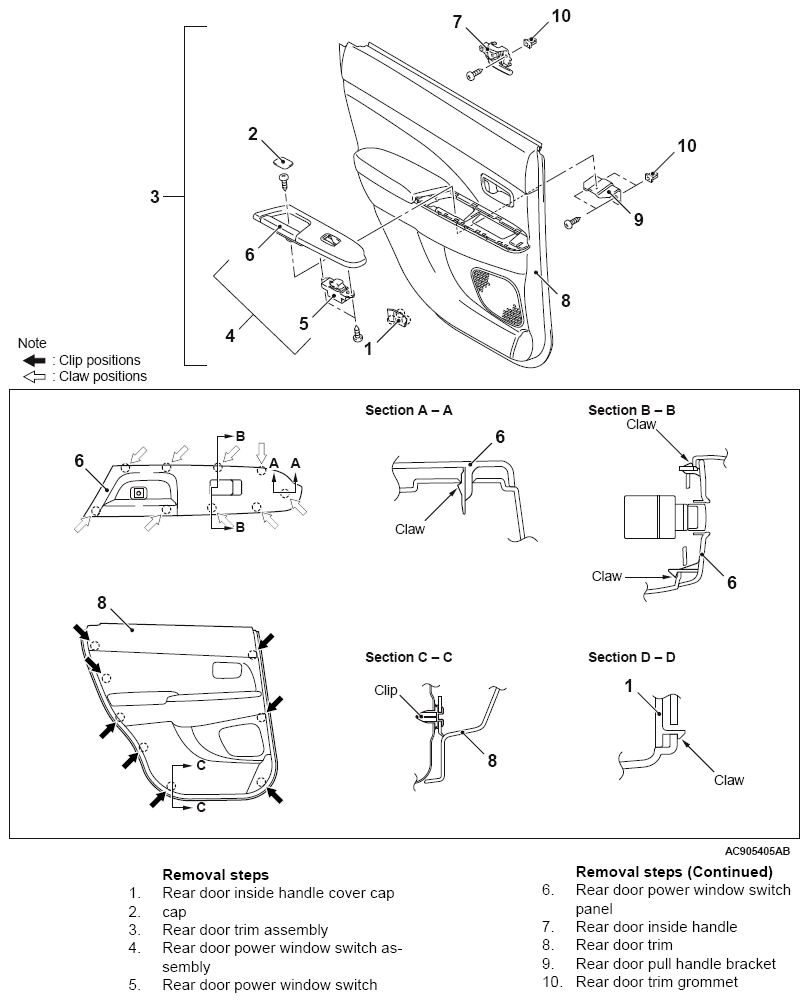

Fig 2: Removing/Installing Rear Door Trim Components
G10231946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
