Disassembly And Reassembly: Notes

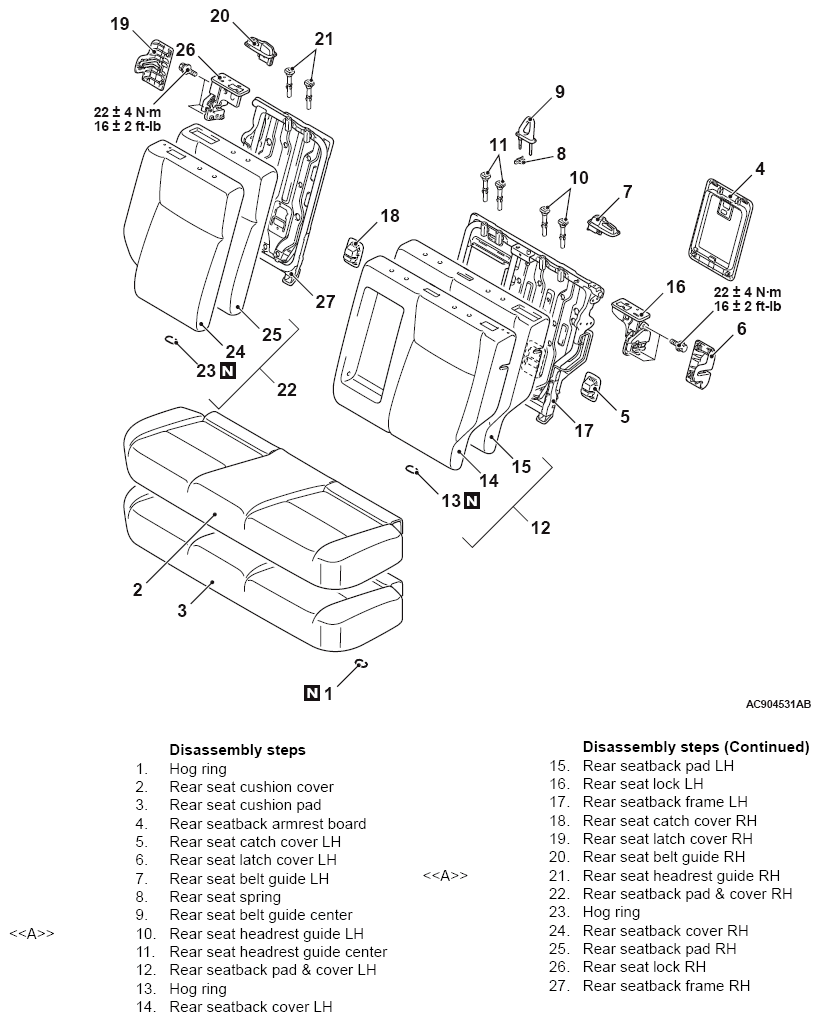

Fig 1: Disassembling/Reassembling Rear Seat Cushion Assembly Components With Torque Specification

G10231982

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
