>> C << Front Bracket Assembly Installation

Remove the brush holding wire after the rotor has been installed.

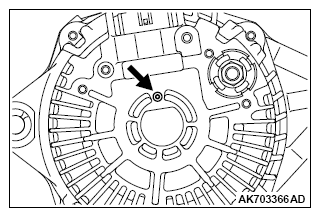

Fig 1: Locating Hole In Rear Bracket

G10229652

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
