Splice Location
>>
Engine Compartment
Engine Compartment

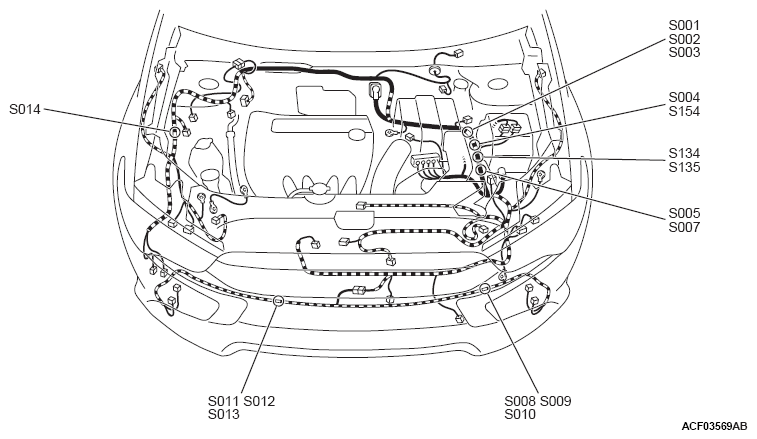

Fig 1: Locating Engine Compartment Splice Positions
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
