RVR ES, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Splice Location
>>
Dash Panel
Dash Panel

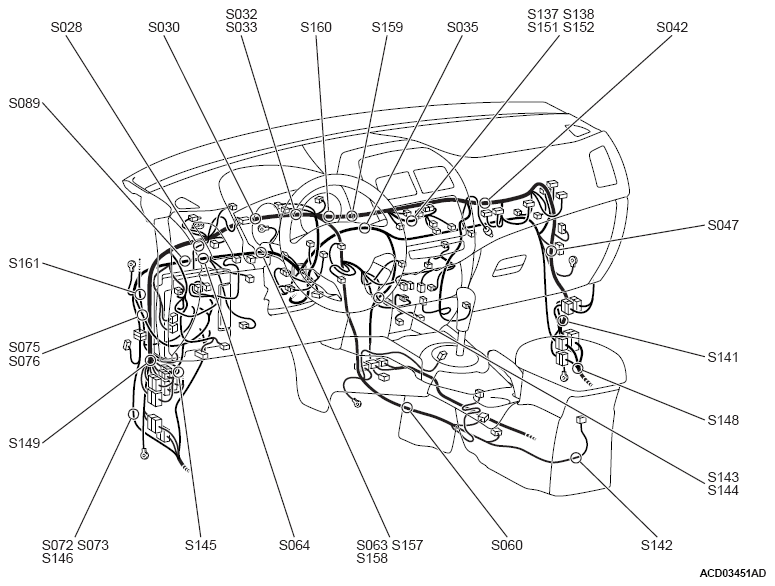

Fig 1: Dash Panel Splice Locations (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Dash Panel Splice Locations (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
