Windshield Spacer/Glass Stopper/Pin Installation

CAUTION: Before proceeding to the next operation, leave the decreased parts for 3 minutes or more to dry. Do not touch the coated surface.
  1. Use the parts cleaner (MZ100387 or equivalent) to degrease the inside circumference of the windshield glass and the body flanges.

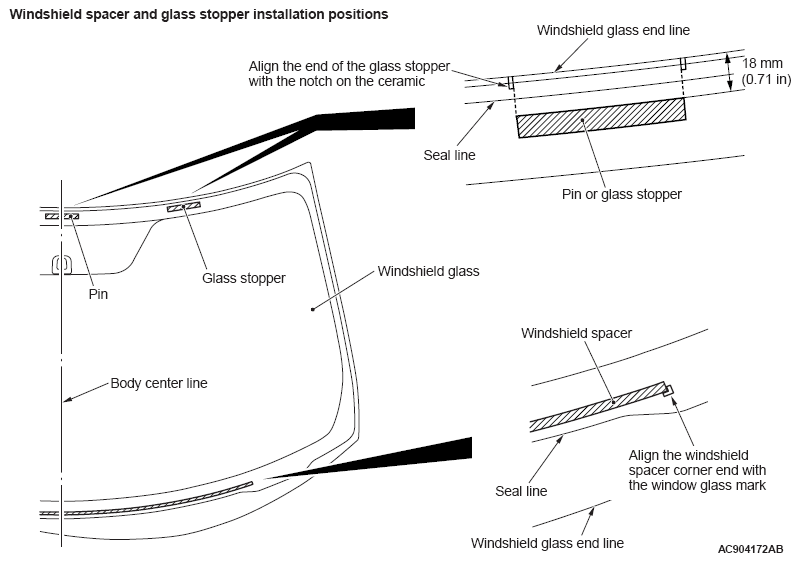

    Fig 1: Identifying Windshield Spacer And Glass Stopper Installation Positions
    G07048586Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Position the windshield spacer to the specified position of the windshield glass so that there is no adrift or warped surface inside the windshield glass.
  3. Install the glass stoppers and pin to the specified position of the windshield glass.
