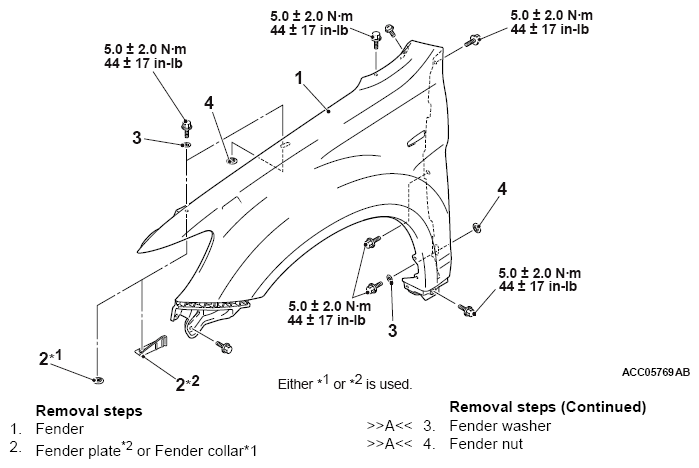

Removal And Installation: Notes
Pre-removal and post-installation operation
- Front wheelhouse splash shield removal and installation (Refer to INSTALLATION SERVICE POINT .)
- Front bumper assembly removal and installation (Refer to FRONT BUMPER ASSEMBLY .)
- Headlight assembly removal and installation (Refer to HEADLIGHT .)
- Side turn-signal light removal and installation (Refer to SIDE TURN-SIGNAL LIGHT .)
- Front deck garnish removal and installation (Refer to WINDSHIELD WIPER .)
- Side air dam removal and installation (Refer to REMOVAL AND INSTALLATION .)
