Removal And Installation

CAUTION: When WCM has been replaced, all key ID codes should be registered, referring to the ID code registration necessity judgment table ID CODES REGISTRATION PROCEDURE  .

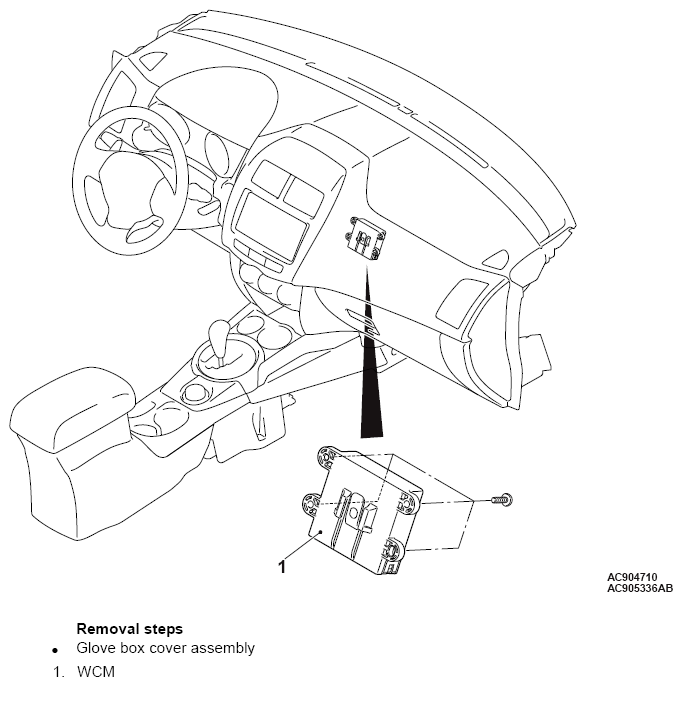

Fig 1: Removing/Installing Wireless Control Module
G10231774Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
