Removal And Installation: Notes

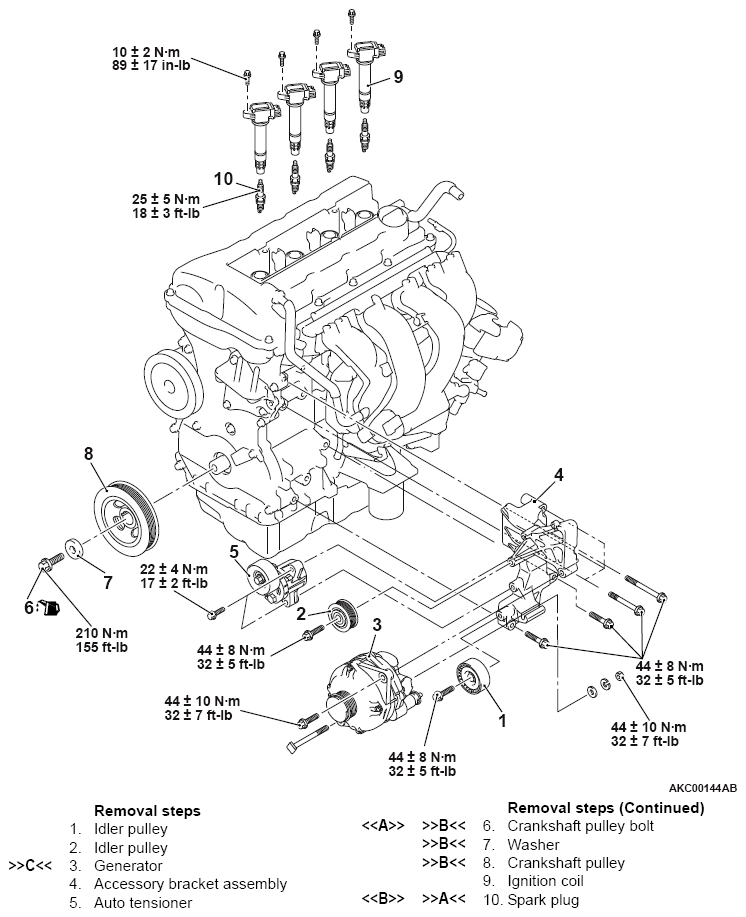

Fig 1: Identifying Generator And Ignition System Components With Torque Specifications
G10227673Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
