Sunshade Assembly
>>
Disassembly And Reassembly
>>
Notes
Disassembly And Reassembly: Notes

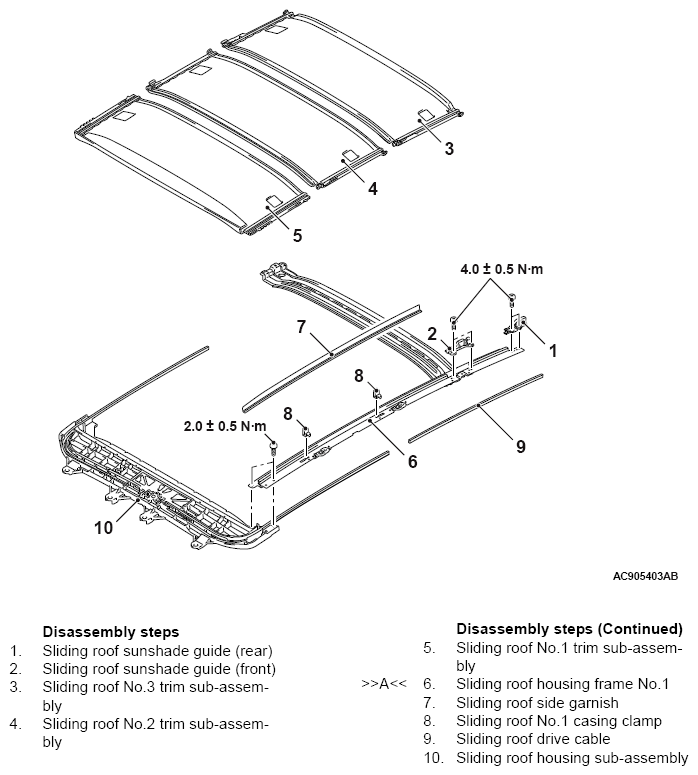

Fig 1: Disassembling/Assembling Sunshade Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
