Removal And Installation: Notes

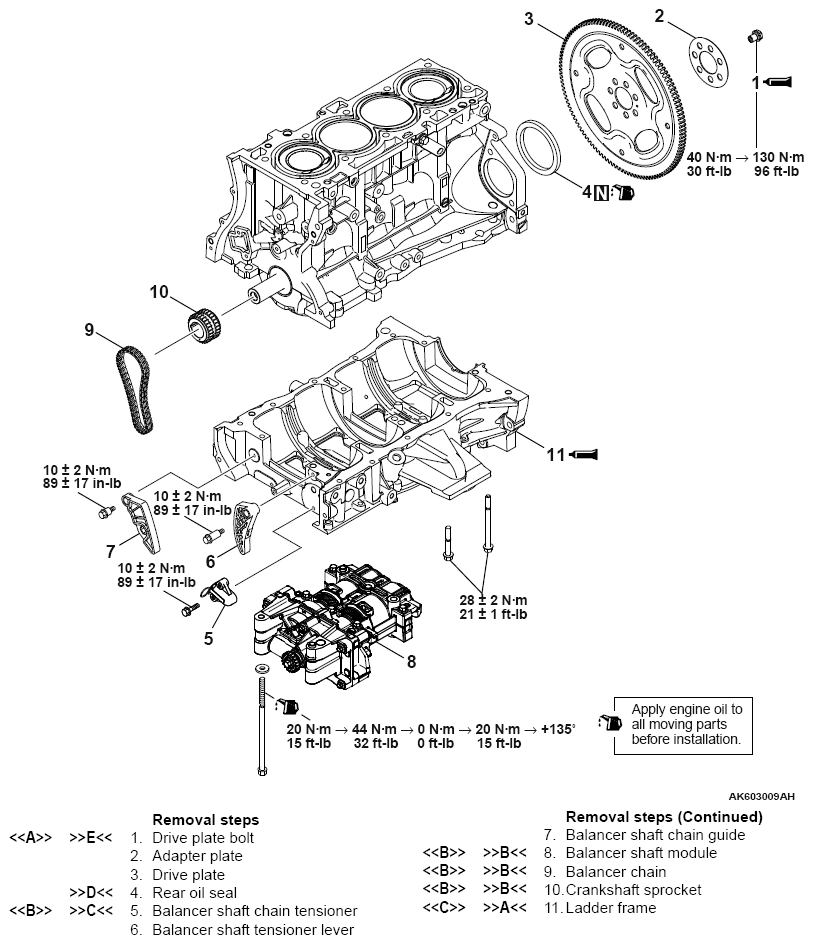

Fig 1: Balancer Chain And Related Components With Torque Specifications
G10227773Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
