Indicator Check

When the S-AWC control mode is selected by operating the drive mode selector.

Whenever the drive mode selector is operated, either of "AWC ECO", "NORMAL", "SNOW", "LOCK" should be displayed continuously at the top and briefly at the center on the multi-information display.

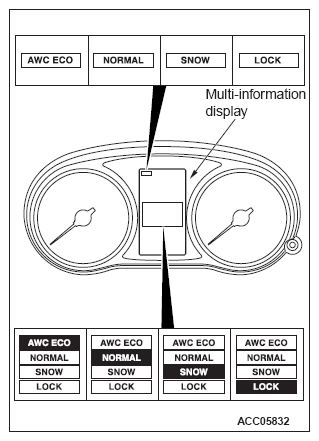

Fig 1: Locating Center On Multi-Information Display

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the actuator test is executed.

"ACTUATOR TEST" should be displayed at the center on the multi-information display.

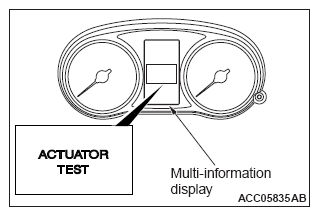

Fig 2: Locating Actuator Test At Center On Multi-Information Display

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
