REMOVAL AND INSTALLATION <3.0L Engine>: Notes

Pre-removal and Post-installation Operation

• Engine Room Under Cover Front Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

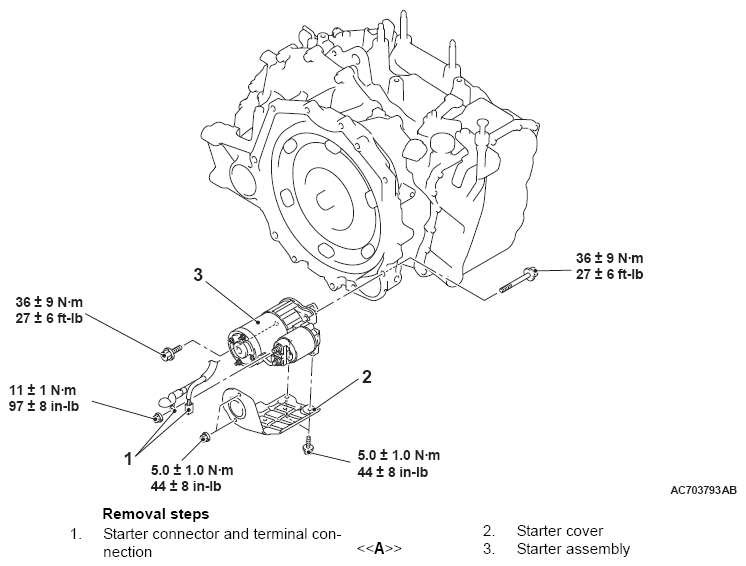

Fig 1: Removing/Installing Starter Motor Assembly Components With Torque Specifications (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
