REMOVAL AND INSTALLATION <2.4L Engine>: Notes

Pre-removal operation  Air Cleaner Intake Duct and Air Intake Hose Removal (Refer to AIR CLEANER ). Battery and Battery Tray Removal (Refer to BATTERY ). Engine room under cover panel removal (Refer to REMOVAL AND INSTALLATION ).

Post-installation operation  Engine Room Under Cover Panel Installation (Refer to REMOVAL AND INSTALLATION ). Battery and Battery Tray Installation (Refer to BATTERY ). Air Cleaner Intake Duct and Air Intake Hose Installation (Refer to AIR CLEANER ).

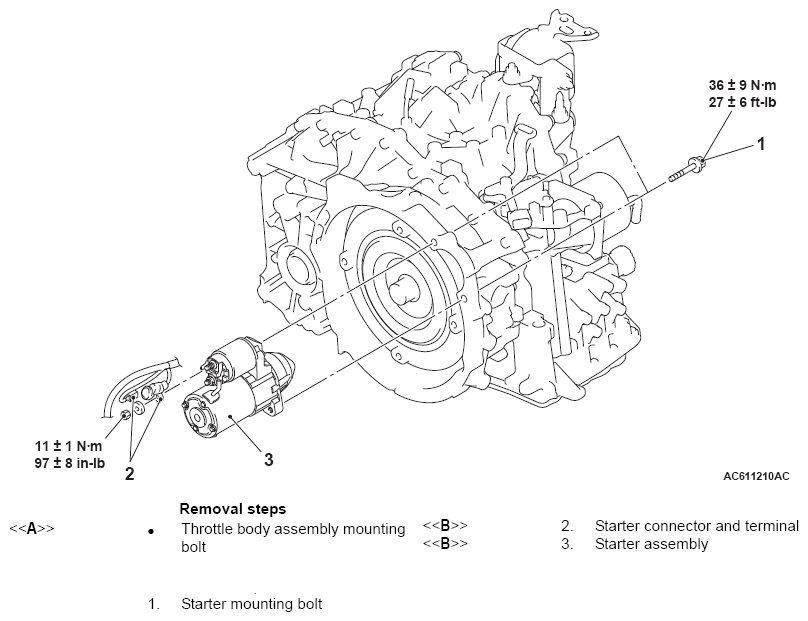

Fig 1: Removing/Installing Starter Motor Assembly Components With Torque Specifications (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
