Instrument Panel Assembly
>>
Disassembly And Reassembly
Disassembly And Reassembly

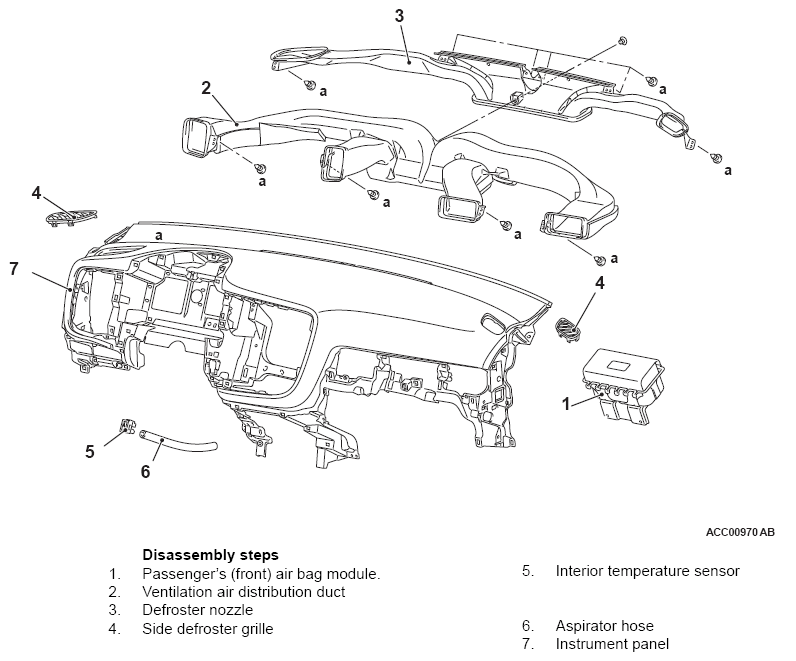

Fig 1: Disassembling/Assembling Instrument Panel Assembly Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
